- Part number
- 3SE5000-0AV07-1AK2
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

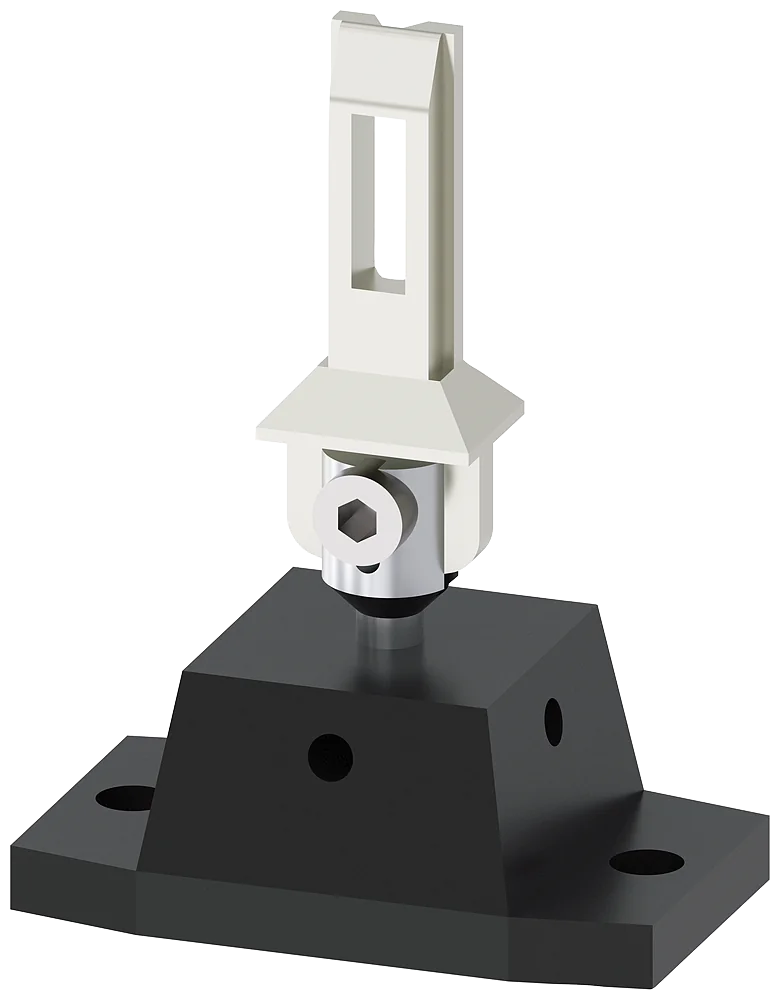

The Siemens 3SE5000-0AV07-1AK2 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Separate actuator, universal radius actuator 'HEAVY DUTY' version vertically and horizontally adjustable, length = 67 mm for position switch with tumbler 3SE5312/3SE5322 and AS-i 3SF13 position switch with separate actuator 3SE51/3SE52 and AS-i with separate actuator 3SF11/3SF12. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE5000-0AV07-1AK2 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 3
| product brand name | SIRIUS |
|---|---|
| product designation | actuator |
| product type designation | 3SE5 |
General technical data 6
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
|---|---|
| vibration resistance: according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
Ambient conditions 2
| ambient temperature: during operation | -25 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +90 °C |
Show all 31 specifications ↓ Show less ↑20 more values in Identification, Drive Head, Installation/ mounting/ dimensions, Logistics.
Identification 10
| Part number | 3SE5000-0AV07-1AK2 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209789050 |
| ETIM class | EC001487 |
| eCl@ss | 27270612 |
Drive Head 1
| design of the actuating element | universal actuator |
|---|
Installation/ mounting/ dimensions 2
| mounting position | any |
|---|---|
| fastening method | screw fixing |
Logistics 7
| Net weight | 0.12 kg |
|---|---|
| Package dimensions | 50 × 25 × 25 mm |
| Country of origin | DE |
| Shipping weight | 0.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5000-0AV07-1AK2
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE5
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209789050.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
