Part number
3SE5000-0AR02
Model no
3SE5
$27.36 On request Dispatch — · From TürkiyeGet a Quote
3SE5

Siemens 3SE5000-0AR02 3SE5 Safety Switch

product brand name
SIRIUS
product designation
actuator head for position switch
product type designation
3SE5
manufacturer's article number: of the supplied actuator head for position switches
3SE5000-0AR02
EAN
4011209696051
Description

About the 3SE5

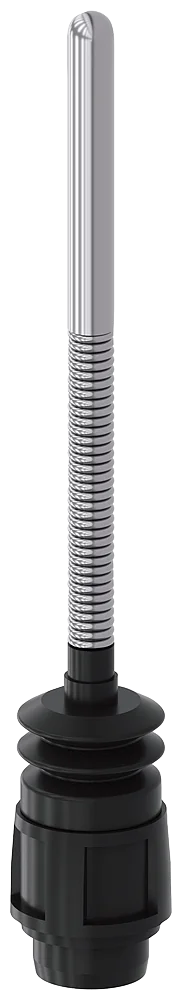

The Siemens 3SE5000-0AR02 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Actuator head: spring rod for position switches 3SE51/52, only with snap-action contacts, total length 142.5 mm spring = 50 mm, plunger = 50 mm, made of stainless steel. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE5000-0AR02 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

42 values · Last verified 31 Oct 2026

General 4

product brand name SIRIUS
product designation actuator head for position switch
product type designation 3SE5
manufacturer's article number: of the supplied actuator head for position switches 3SE5000-0AR02

General technical data 10

product function positive opening No
protection class IP IP65, IP67
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance: according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 10 000 000
material of the enclosure of the switch head plastic
reference code according to IEC 81346-2 T
active principle mechanical
Substance Prohibitance (day/month/year) 07/01/2006
SVHC substance name Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Ambient conditions 3

ambient temperature: during operation -25 ... +85 °C
ambient temperature: during storage -40 ... +90 °C
explosion protection category for dust none
Show all 42 specifications ↓ Show less ↑25 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Communication/ Protocol, Logistics.

Identification 10

Part number 3SE5000-0AR02
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209696051
ETIM class EC001487
eCl@ss 27270612

Enclosure 1

coating of the enclosure Other types

Drive Head 3

design of the actuating element Spring rod, total length = 142.5 mm (spring 50 mm + high-grade steel plunger 50 mm)
shape of the switch head spring
outer diameter of the switch head 7 mm

Installation/ mounting/ dimensions 3

mounting position any
fastening method lockable plug-in fixing
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

Logistics 7

Net weight 0.047 kg
Package dimensions 124 × 172 × 29 mm
Country of origin DE
Shipping weight 0.547 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026
