Part number
3SE5000-0AH00
Model no
3SE5
$19.17 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SE5

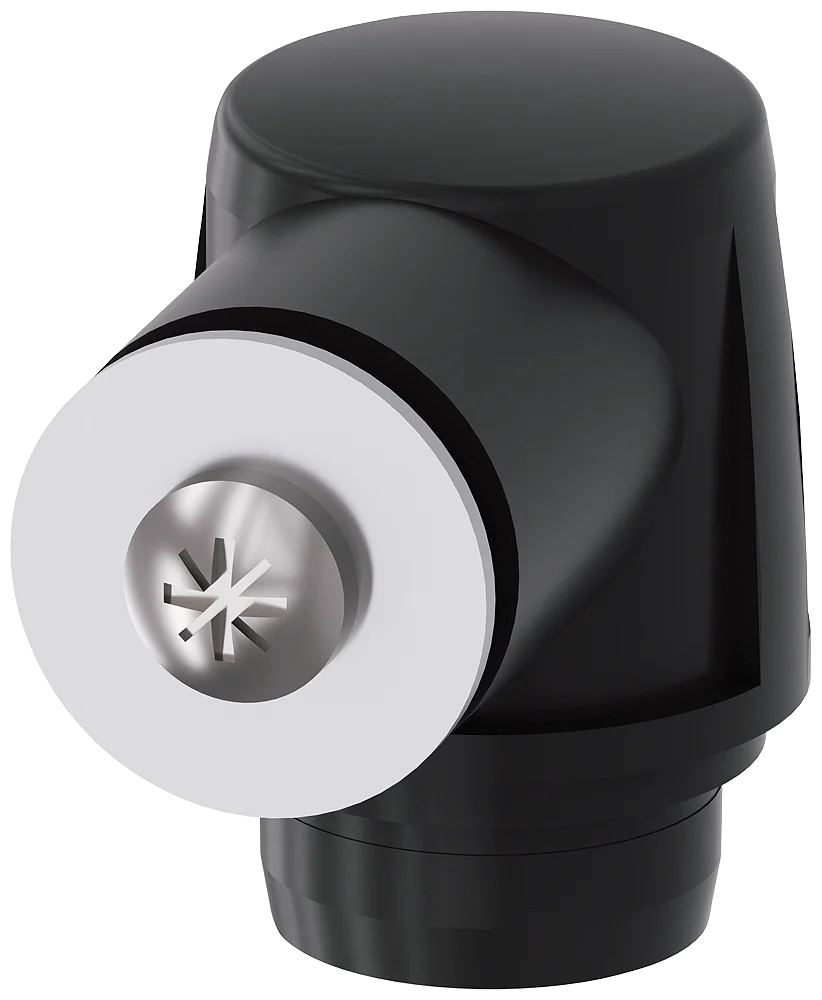

Siemens 3SE5000-0AH00 3SE5 Safety Switch

product brand name
SIRIUS
product designation
Part-turn actuator for position switch 3SE51/3SF11
product type designation
3SE5
manufacturer's article number: of the supplied actuator head for position switches
3SE5000-0AH00
EAN
4011209696020
Description

About the 3SE5

The Siemens 3SE5000-0AH00 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Pivoting lever drive (Please order lever separately) for position switch 3SE51/3SF11, for 40/56/56XL mm, Switch points according to EN 50041. The switching direction the lever is on left / right or left only or only to the right. Delivery state ist right / left. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • EN 50041

Applications & Use Cases

The Siemens 3SE5000-0AH00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

38 values · Last verified 31 Oct 2026

General 4

product brand name SIRIUS
product designation Part-turn actuator for position switch 3SE51/3SF11
product type designation 3SE5
manufacturer's article number: of the supplied actuator head for position switches 3SE5000-0AH00

General technical data 7

shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance: according to IEC 60068-2-6 0.35 mm/5 g
material of the enclosure of the switch head plastic
reference code according to IEC 81346-2 T
active principle mechanical
Substance Prohibitance (day/month/year) 07/01/2006
minimum actuating torque in directions of actuation 0.25 N·m

Ambient conditions 3

ambient temperature: during operation -25 ... +85 °C
ambient temperature: during storage -40 ... +90 °C
explosion protection category for dust none
Show all 38 specifications ↓ Show less ↑24 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Communication/ Protocol, Logistics.

Identification 10

Part number 3SE5000-0AH00
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209696020
ETIM class EC001487
eCl@ss 27270612

Enclosure 1

coating of the enclosure Other types

Drive Head 2

design of the actuating element Twist actuator, without lever or rod
standard-compliant actuator head EN 50041

Installation/ mounting/ dimensions 3

mounting position any
fastening method lockable plug-in fixing
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

Logistics 7

Net weight 0.032 kg
Package dimensions 91 × 78 × 40 mm
Country of origin DE
Shipping weight 0.532 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE5000-0AH00

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 50041
