- Part number
- 3SE5000-0AB01
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

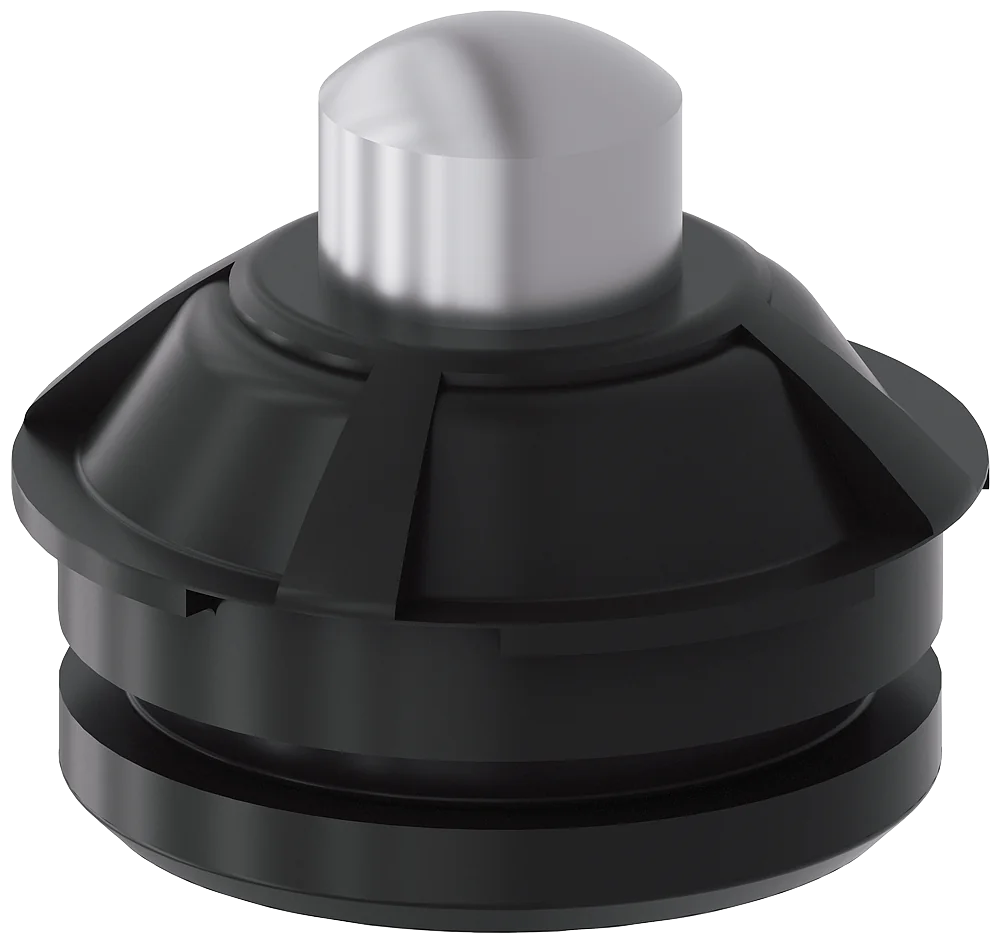

The Siemens 3SE5000-0AB01 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Actuator head for position switch 3SE51/52, plain plunger made of stainless steel. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE5000-0AB01 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 4
| product brand name | SIRIUS |
|---|---|
| product designation | actuator head for position switch |
| product type designation | 3SE5 |
| manufacturer's article number: of the supplied actuator head for position switches | 3SE5000-0AB01 |
General technical data 9
| product function positive opening | Yes |
|---|---|
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance: according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| material of the enclosure of the switch head | metal |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| minimum actuating force in directions of actuation | 20 N |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Show all 41 specifications ↓ Show less ↑25 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Communication/ Protocol, Logistics.
Identification 10
| Part number | 3SE5000-0AB01 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209695795 |
| ETIM class | EC001487 |
| eCl@ss | 27270612 |
Enclosure 1
| coating of the enclosure | Other types |
|---|
Drive Head 3
| design of the actuating element | Rounded plunger, high-grade steel plunger |
|---|---|
| shape of the switch head | rounded |
| outer diameter of the switch head | 8.5 mm |
Installation/ mounting/ dimensions 3
| mounting position | any |
|---|---|
| fastening method | lockable plug-in fixing |
| design of the interface for safety-related communication | without |
Communication/ Protocol 1
| design of the interface | without |
|---|
Logistics 7
| Net weight | 0.015 kg |
|---|---|
| Package dimensions | 20 × 20 × 10 mm |
| Country of origin | DE |
| Shipping weight | 0.515 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5000-0AB01
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE5
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209695795.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
