- Part number
- 3SE5000-0AA60
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

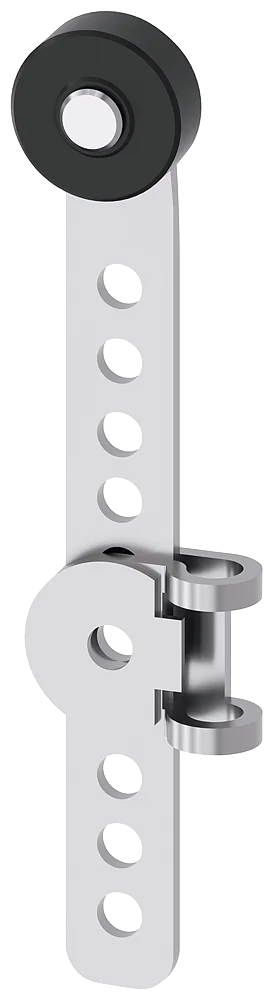

The Siemens 3SE5000-0AA60 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Adjustable-length Twist lever for position switch 3SE51/52 Metal lever 100 mm long Positive fit (grid hole) plastic roller 19 mm. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE5000-0AA60 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 4
| product brand name | SIRIUS |
|---|---|
| product designation | actuator for part-turn actuator |
| product type designation | 3SE5 |
| manufacturer's article number: of the supplied operating lever | 3SE5000-0AA60 |
General technical data 7
| product function positive opening | Yes |
|---|---|
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance: according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Show all 39 specifications ↓ Show less ↑25 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Communication/ Protocol, Logistics.
Identification 10
| Part number | 3SE5000-0AA60 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209695696 |
| ETIM class | EC001487 |
| eCl@ss | 27270612 |
Enclosure 1
| coating of the enclosure | Other types |
|---|
Drive Head 3
| design of the actuating element | Adjustable twist lever, adjustable-length metal lever with latching, plastic roller 19 mm |
|---|---|
| shape of the switch head | roller |
| outer diameter of the switch head | 19 mm |
Installation/ mounting/ dimensions 3
| mounting position | any |
|---|---|
| fastening method | screw fixing |
| design of the interface for safety-related communication | without |
Communication/ Protocol 1
| design of the interface | without |
|---|
Logistics 7
| Net weight | 0.037 kg |
|---|---|
| Package dimensions | 110 × 18 × 10 mm |
| Country of origin | DE |
| Shipping weight | 0.537 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5000-0AA60
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE5
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209695696.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
