- Part number
- 3SE5000-0AA21
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

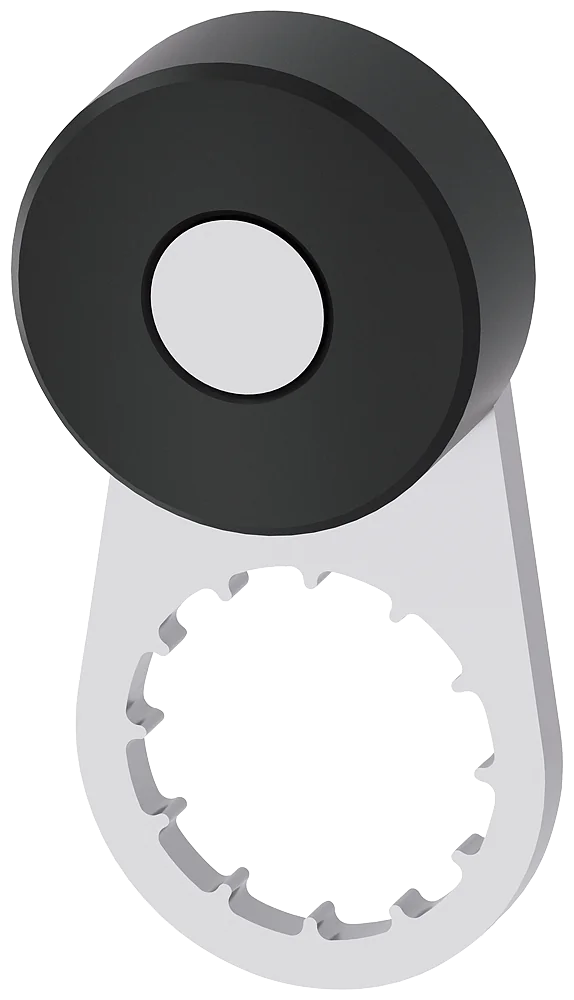

The Siemens 3SE5000-0AA21 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Twist lever for position switch 3SE52 Metal lever, Form A 21 mm long plastic roller 19 mm according to EN 50047. Supplied by Stoklink for industrial and commercial low-voltage applications.
Certifications & Standards
- EN 50047
Applications & Use Cases
The Siemens 3SE5000-0AA21 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 4
| product brand name | SIRIUS |
|---|---|
| product designation | actuator for part-turn actuator |
| product type designation | 3SE5 |
| manufacturer's article number: of the supplied operating lever | 3SE5000-0AA21 |
General technical data 7
| product function positive opening | Yes |
|---|---|
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance: according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Show all 40 specifications ↓ Show less ↑26 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Communication/ Protocol, Logistics.
Identification 10
| Part number | 3SE5000-0AA21 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209695542 |
| ETIM class | EC001487 |
| eCl@ss | 27270612 |
Enclosure 1
| coating of the enclosure | Other types |
|---|
Drive Head 4
| design of the actuating element | Twist lever, metal lever, 21 mm long, straight, plastic roller 19 mm |
|---|---|
| standard-compliant actuator head | EN 50047, design A |
| shape of the switch head | roller |
| outer diameter of the switch head | 19 mm |
Installation/ mounting/ dimensions 3
| mounting position | any |
|---|---|
| fastening method | screw fixing |
| design of the interface for safety-related communication | without |
Communication/ Protocol 1
| design of the interface | without |
|---|
Logistics 7
| Net weight | 0.021 kg |
|---|---|
| Package dimensions | 40 × 19 × 11 mm |
| Country of origin | DE |
| Shipping weight | 0.521 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5000-0AA21
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN 50047
Quick answers
Questions about the 3SE5
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209695542.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
