Part number
3SE5000-0AA15
Model no
3SE5
$15.94 On request Dispatch — · From TürkiyeGet a Quote
3SE5

Siemens 3SE5000-0AA15 3SE5 Safety Switch

product brand name
SIRIUS
product designation
actuator for part-turn actuator
product type designation
3SE5
manufacturer's article number: of the supplied operating lever
3SE5000-0AA15
EAN
4011209695535
Description

About the 3SE5

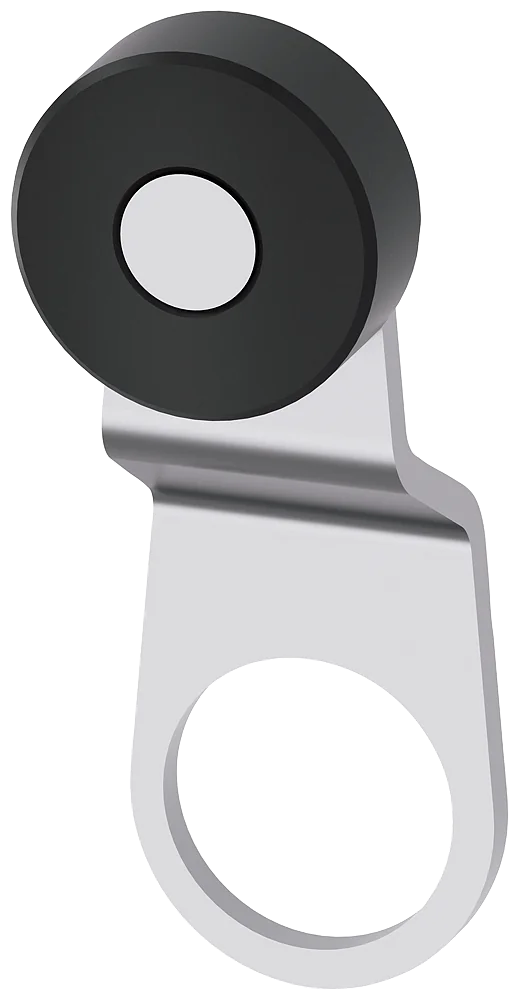

The Siemens 3SE5000-0AA15 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Twist lever for position switch 3SE51 metal lever 35 mm long, Step 9 mm with plastic roller 19 mm. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • EN 50041

Applications & Use Cases

The Siemens 3SE5000-0AA15 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

40 values · Last verified 31 Oct 2026

General 4

product brand name SIRIUS
product designation actuator for part-turn actuator
product type designation 3SE5
manufacturer's article number: of the supplied operating lever 3SE5000-0AA15

General technical data 7

product function positive opening Yes
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance: according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 15 000 000
reference code according to IEC 81346-2 T
active principle mechanical
Substance Prohibitance (day/month/year) 07/01/2006

Ambient conditions 3

ambient temperature: during operation -25 ... +85 °C
ambient temperature: during storage -40 ... +90 °C
explosion protection category for dust none
Show all 40 specifications ↓ Show less ↑26 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Communication/ Protocol, Logistics.

Identification 10

Part number 3SE5000-0AA15
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209695535
ETIM class EC001487
eCl@ss 27270612

Enclosure 1

coating of the enclosure Other types

Drive Head 4

design of the actuating element Twist lever, metal lever, 35 mm long, step 9 mm, plastic roller 19 mm
standard-compliant actuator head EN 50041, design A
shape of the switch head roller
outer diameter of the switch head 19 mm

Installation/ mounting/ dimensions 3

mounting position any
fastening method screw fixing
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

Logistics 7

Net weight 0.025 kg
Package dimensions 115 × 55 × 14 mm
Country of origin DE
Shipping weight 0.525 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE5000-0AA15

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 50041
Quick answers

Questions about the 3SE5

What is the EAN of 3SE5?

The EAN (GTIN) of 3SE5 is 4011209695535.

Where does 3SE5 ship from, and how fast?

3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
