- Part number
- 3SB6163-3CA24-1MK0
- Model no
- 3SB6
Description
About the 3SB6
About the 3SB6

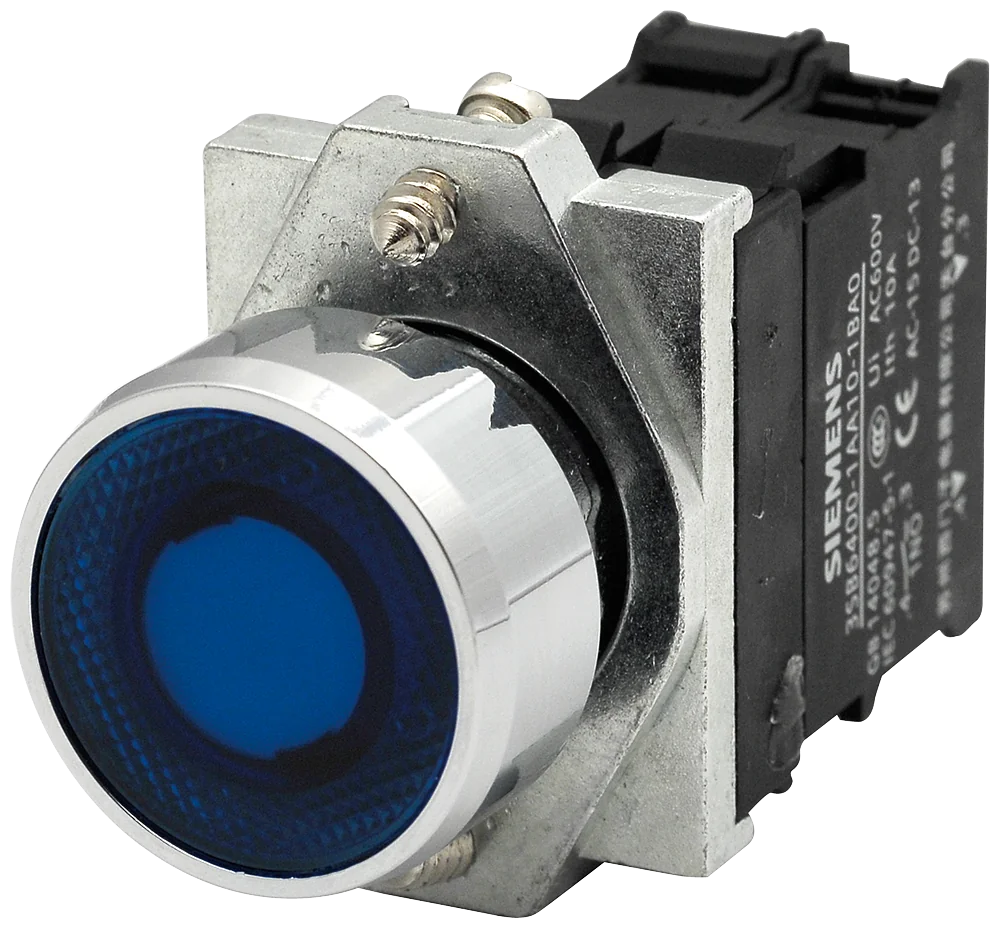

The Siemens 3SB6163-3CA24-1MK0 is a pilot device from the SENTRON/SIRIUS 3SB6 series. Pilot Device from the Siemens 3SB6 series. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SB6163-3CA24-1MK0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SB6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 34
| product brand name | SIRIUS |
|---|---|
| product category | Commanding and signaling devices |
| product designation | Twin pushbutton |
| design of the product | Complete unit |
| product type designation | 3SB6 |
| product line | Metal, shiny, 22 mm |
| number of command points | 2 |
| principle of operation of the actuating element | momentary |
| product extension optional light source | No |
| color of the actuating element | red/green |
| shape of the actuating element | round |
| product component front ring | No |
| material of the front ring | metal |
| color of the front ring | chrome |
| product component light source | No |
| protection class IP | IP65 |
| shock resistance according to IEC 60068-2-27 | 5 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| mechanical service life (operating cycles) typical | 300 000 |
| electrical endurance (operating cycles) typical | 3 000 000 |
| Substance Prohibitance (day/month/year) | 03/01/2017 |
| type of voltage | AC/DC |
| supply voltage of the light source at AC: at 50 Hz rated value | 24 V |
| supply voltage of the light source at AC: at 60 Hz rated value | 24 V |
| supply voltage 1 of the light source at DC rated value | 24 V |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| ambient temperature: during operation | -25 ... +70 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| fastening method | screw fixing |
| mounting diameter | 22 mm |
| mounting height | 46.5 mm |
| installation width | 30 mm |
Show all 49 specifications ↓ Show less ↑15 more values in Identification, Logistics.
Identification 8
| Part number | 3SB6163-3CA24-1MK0 |
|---|---|
| Type designation | 3SB6 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6939610758565 |
Logistics 7
| Net weight | 0.121 kg |
|---|---|
| Package dimensions | 167 × 119 × 83 mm |
| Country of origin | CN |
| Shipping weight | 0.621 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
