- Part number
- 3SB6110-4AA11-1BA0
- Model no
- 3SB6
Description
About the 3SB6
About the 3SB6

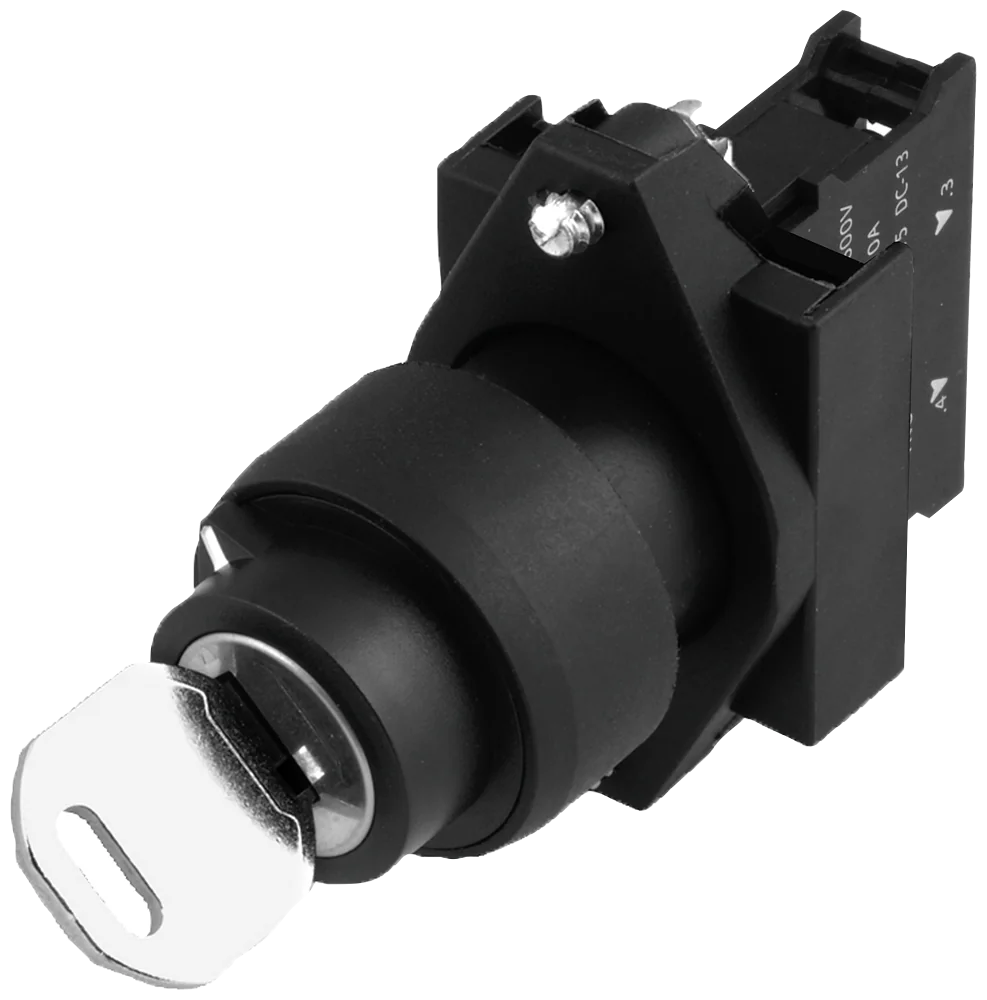

The Siemens 3SB6110-4AA11-1BA0 is a pilot device from the SENTRON/SIRIUS 3SB6 series. Pilot Device from the Siemens 3SB6 series. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SB6110-4AA11-1BA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SB6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 6
| product brand name | SIRIUS |
|---|---|
| product category | Commanding and signaling devices |
| product designation | Key-operated switch |
| design of the product | Complete unit |
| product type designation | 3SB6 |
| product line | Plastic, black, 22 mm |
Enclosure 1
| shape of the enclosure front | round |
|---|
Actuator 4
| principle of operation of the actuating element | maintained |
|---|---|
| product extension optional light source | No |
| color of the actuating element | black |
| number of switching positions | 2 |
Show all 45 specifications ↓ Show less ↑34 more values in Identification, Front ring, General technical data, Ambient conditions, Installation/ mounting/ dimensions, Logistics.
Identification 8
| Part number | 3SB6110-4AA11-1BA0 |
|---|---|
| Type designation | 3SB6 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6939610742144 |
Front ring 3
| product component front ring | No |
|---|---|
| material of the front ring | plastic |
| color of the front ring | black |
General technical data 10
| product function positive opening | Yes |
|---|---|
| product component light source | No |
| protection class IP | IP65 |
| mechanical service life (operating cycles) typical | 50 000 |
| electrical endurance (operating cycles) typical | 3 000 000 |
| Substance Prohibitance (day/month/year) | 03/01/2017 |
| operating voltage rated value | 24 ... 415 V |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
Ambient conditions 2
| ambient temperature: during operation | -25 ... +75 °C |
|---|---|
| ambient temperature: during storage | 80 ... -40 °C |
Installation/ mounting/ dimensions 4
| fastening method | screw fixing |
|---|---|
| mounting diameter | 22 mm |
| mounting height | 46.5 mm |
| installation width | 30 mm |
Logistics 7
| Net weight | 0.069 kg |
|---|---|
| Package dimensions | 167 × 119 × 83 mm |
| Country of origin | CN |
| Shipping weight | 0.569 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SB6110-4AA11-1BA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SB6
What is the EAN of 3SB6?
The EAN (GTIN) of 3SB6 is 6939610742144.
Where does 3SB6 ship from, and how fast?
3SB6 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
