Part number
3SB2224-6BG06
Model no
3SB2
$17.83 In stock · 33 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SB2

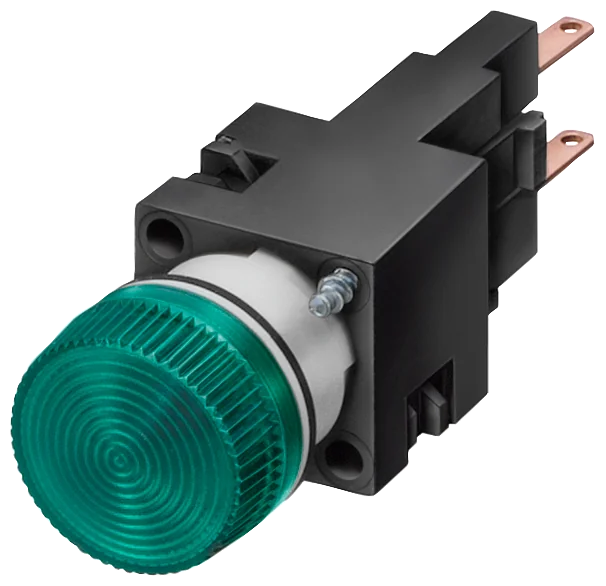

Siemens 3SB2224-6BG06 3SB2 24V Pilot Device

Rated operational voltage
24 V AC
EAN
4011209028289
Description

About the 3SB2

The Siemens 3SB2224-6BG06 is a pilot device from the SENTRON/SIRIUS 3SB2 series. Indicator light, 16 mm, round, plastic, white, Lampholder W2 x 4.6 d, with incandescent lamp 24 V. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SB2224-6BG06 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SB2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

63 values · Last verified 30 Oct 2026

General 4

product brand name SIRIUS
product designation Indicator lights
design of the product Complete unit round
product type designation 3SB2

Enclosure 1

number of command points 0

Actuator 6

design of the actuating element indicator light
product extension optional light source Yes
color of the actuating element white
material of the actuating element plastic
type of unlocking device without
number of switching positions 2
Show all 63 specifications ↓ Show less ↑52 more values in Identification, Front ring, Holder, Contact block/ lampholder, General technical data, Supply voltage, Auxiliary circuit, Connections/ Terminals, Ambient conditions, Installation/ mounting/ dimensions, Logistics.

Identification 10

Part number 3SB2224-6BG06
Type designation 3SB2
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209028289
ETIM class EC000272
eCl@ss 27371223

Front ring 1

product component front ring No

Holder 1

material of the holder Plastic

Contact block/ lampholder 3

socket design W2 x 4.6d with lamp
number of lampholders 1
number of switching elements 0

General technical data 9

product function: positive opening No
product function: EMERGENCY STOP function No
product component light source Yes
type of voltage of the operating voltage AC/DC
protection class IP IP65
vibration resistance according to IEC 60068-2-6 20 ... 200 Hz: 5 g
reference code according to IEC 81346-2 P
Substance Prohibitance (day/month/year) 07/01/2006
operating voltage rated value 5 ... 60 V

Supply voltage 6

type of voltage of the supply voltage: of the light source AC/DC
supply voltage of the light source at AC: at 50 Hz rated value 24 V
supply voltage of the light source at AC: at 60 Hz rated value 24 V
supply voltage 1 of the light source at DC rated value 24 V
relative negative tolerance of the supply voltage -15 %
relative positive tolerance of the supply voltage 10 %

Auxiliary circuit 4

number of NC contacts for auxiliary contacts 0
number of NO contacts for auxiliary contacts 0
number of CO contacts for auxiliary contacts 0
consumed current for rated value of supply voltage maximum 40 mA

Connections/ Terminals 2

type of electrical connection tab terminals
tightening torque of the screws in the bracket maximum 0.4 N·m

Ambient conditions 3

ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 60721 3K6

Installation/ mounting/ dimensions 6

fastening method front plate mounting
shape of the installation opening round
mounting diameter 16 mm
mounting height 9 mm
installation width 19 mm
installation depth 50 mm

Logistics 7

Net weight 0.01 kg
Package dimensions 52 × 50 × 81 mm
Country of origin CZ
Shipping weight 0.51 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SB2224-6BG06

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SB2

Which supply voltage is 3SB2 rated for?

The rated operational voltage of 3SB2 is 24 V AC.

What is the EAN of 3SB2?

The EAN (GTIN) of 3SB2 is 4011209028289.

Where does 3SB2 ship from, and how fast?

3SB2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
