3RW5245-6AC14, Soft Starter, 160 kW, 315 A, 200 to 480V AC

Siemens 3RW52 Soft Starter Series – Overview

Siemens 3RW52 soft starters are high-performance motor starting solutions designed for demanding industrial applications requiring precise and reliable control of three-phase asynchronous motors. The 3RW52 series focuses on reducing mechanical stress, limiting inrush current, and supporting higher motor power ratings with advanced protection functions compared to compact soft starters. With robust construction and enhanced motor protection capabilities, Siemens 3RW52 soft starters are well suited for heavy-duty applications such as large pumps, compressors, conveyors, mixers, and industrial process machinery where dependable motor starting and operational reliability are critical.

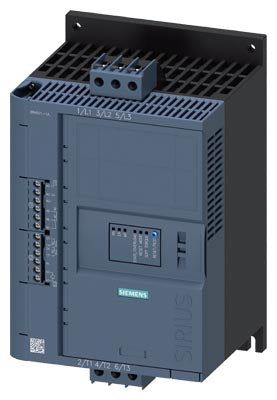

Product Description: 3RW5245-6AC14

The Siemens 3RW5245-6AC14 is a SIRIUS 3RW52 general-performance soft starter rated for an operational current of 315 A and designed for supply voltages from 200 to 480 V AC, suitable for three-phase motor installations. At 400 V the device is specified for motor power ratings up to 160 kW (inline/standard connection), with lower nominal kW at 230 V, making it appropriate for larger pumps, compressors, conveyors and other heavy-duty industrial motors where controlled starting and reduced mechanical stress are required. The unit uses three-phase soft-start control with ramp-up / ramp-down starting modes and includes an integrated bypass to reduce internal heating during run conditions. Built-in motor protection functions — including overload protection and adjustable maximum starting current — help protect the motor during start cycles and shorten troubleshooting time with features such as remote reset. This SKU is supplied with a 110–250 V control/coil supply and is offered in an IP00 enclosure configuration for fitting into control cabinets.

Key Soft Starter Attributes
