Siemens 3RQ4070-1SG30 3RQ4 5A 230V Relay

% $-75.78

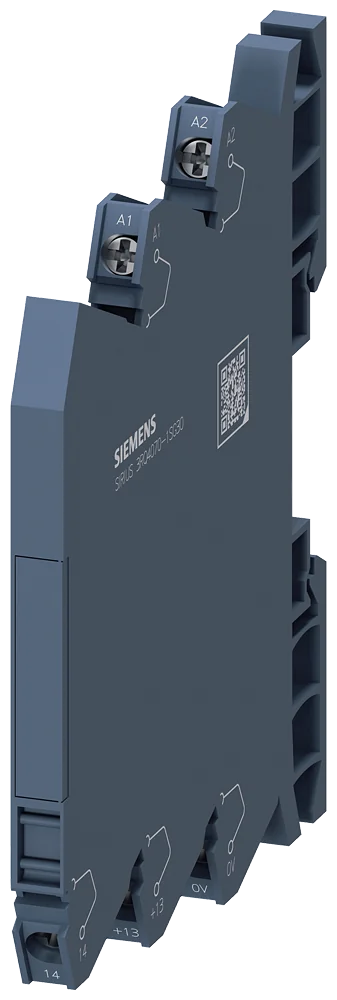

Siemens 3RQ4070-1SG30 Relay
Siemens 3RQ4070-1SG30 Relay

Siemens 3RQ4070-1SG30 3RQ4 5A 230V Relay

Brand: Siemens
Reference No: 3RQ4070-1SG30
Catalog No: 3RQ4070-1SG30
Series: 3RQ4
Rated Current: 5A
Rated Voltage: 230V
Stock: 0
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$75.78

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 3RQ4070-1SG30 is a relay from the SENTRON/SIRIUS 3RQ4 series. Input optocoupler, 110-230 V AC/DC, 1 NO contact, screw terminal, width 6.2 mm, thermal current 5 A. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU 3RQ4070-1SG30
Brand Siemens
Series 3RQ4
Product Type Relay
Display version LED Yes
Relay output No
Semi-conductor output Yes
Power loss [W] maximum 1.9 W
Consumed active power 0.5 W
Surge voltage resistance rated value 4 kV
Between control and auxiliary circuit 300 V
Protection class IP IP20
Flammability class of enclosure material UL94 V-0
According to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
According to IEC 60068-2-6 6 ... 150 Hz: 2 g
Switching behavior monostable
Switching frequency 25 Hz
Thermal current 6 A
Short-time withstand current (Icw) limited to 10 ms 8 A
Net Weight 0.035 kg
At 50 Hz rated value 110 ... 230 V
At 60 Hz rated value 110 ... 230 V
Weight 0.035 kg
Country of Origin DE

Certifications & Standards

  • EN 60947-5

Applications & Use Cases

The Siemens 3RQ4070-1SG30 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RQ4 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)
5A
Rated Voltage (VAC)
230V
Catalog No
3RQ4070-1SG30
Standards
EN 60947-5
Delivery Date (Days)
1-2 days
Model Number
3RQ4
