Siemens 3RQ4055-1SM30 3RQ4 6A 24V Relay

% $-59.51

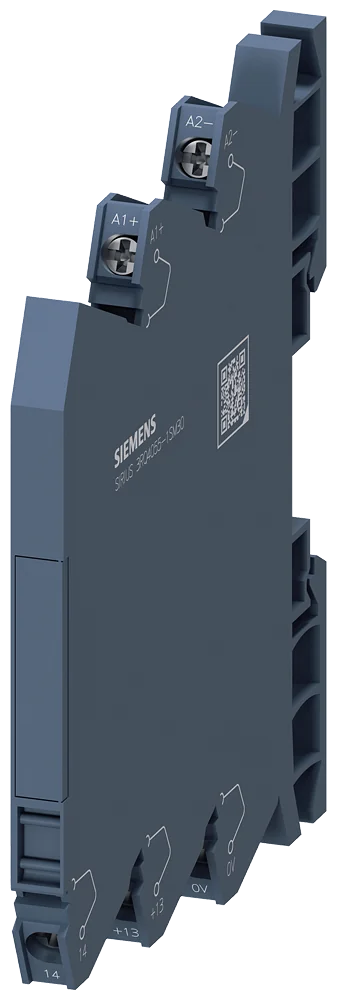

Siemens 3RQ4055-1SM30 Relay
Siemens 3RQ4055-1SM30 Relay

Siemens 3RQ4055-1SM30 3RQ4 6A 24V Relay

Brand: Siemens
Reference No: 3RQ4055-1SM30
Catalog No: 3RQ4055-1SM30
Series: 3RQ4
Rated Current: 6A
Rated Voltage: 24V
Stock: 0
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$59.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 3RQ4055-1SM30 is a relay from the SENTRON/SIRIUS 3RQ4 series. Output optocoupler, 24 V DC, 1 NO contact, screw terminal, width 6.2 mm, thermal current 6 A. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU 3RQ4055-1SM30
Brand Siemens
Series 3RQ4
Product Type Relay
Display version LED Yes
Relay output No
Semi-conductor output Yes
Power loss [W] maximum 0.15 W
Consumed active power 0.2 W
Surge voltage resistance rated value 3 kV
Between control and auxiliary circuit 300 V
Protection class IP IP20
Flammability class of enclosure material UL94 V-0
According to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
According to IEC 60068-2-6 6 ... 150 Hz: 2 g
Switching behavior monostable
Switching frequency 100 Hz
Thermal current 6 A
Short-time withstand current (Icw) limited to 10 ms 8 A
Net Weight 0.035 kg
Control supply voltage at DC rated value 11 ... 30 V
Initial value 0.7
Weight 0.035 kg
Country of Origin DE

Certifications & Standards

  • EN 60947-5

Applications & Use Cases

The Siemens 3RQ4055-1SM30 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RQ4 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)
6A
Rated Voltage (VAC)
24V
Catalog No
3RQ4055-1SM30
Standards
EN 60947-5
Delivery Date (Days)
1-2 days
Model Number
3RQ4
