Siemens 3RQ4018-2AM08-0AA0 3RQ4 6A 24V Relay

Name: Siemens 3RQ4018-2AM08-0AA0 3RQ4 6A 24V Relay
Brand: Siemens
SKU: 3RQ4018-2AM08-0AA0
Price: 23.12 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RQ4018-2AM08-0AA0

Catalog No: 3RQ4018-2AM08-0AA0

Series: 3RQ4

Rated Current: 6A

Rated Voltage: 24V

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$23.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

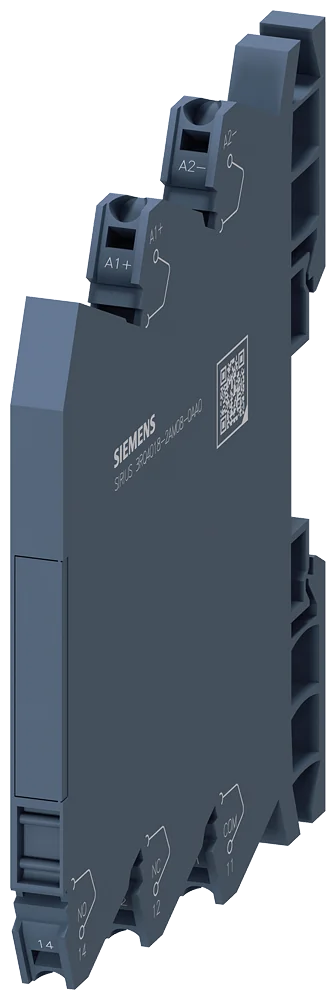

The Siemens 3RQ4018-2AM08-0AA0 is a relay from the SENTRON/SIRIUS 3RQ4 series. Output coupler with integrated relay, 24 V DC (0.7-1.25 x Us), 1 change-over contact, spring-loaded terminal (push-in), width 6.2 mm, thermal current 6 A. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RQ4018-2AM08-0AA0
Brand	Siemens
Series	3RQ4
Product Type	Relay
Display version LED	Yes
Relay output	Yes
Semi-conductor output	No
Power loss [W] maximum	0.3 W
Consumed active power	0.3 W
Surge voltage resistance rated value	4 kV
Between control and auxiliary circuit	300 V
Percental drop-out voltage related to the input voltage	14.6 %
Protection class IP	IP20
Flammability class of enclosure material	UL94 V-0
For railway applications according to EN 61373	Category 1, Class B
Operating frequency maximum	72 000 1/h
Switching behavior	monostable
Mechanical service life (operating cycles) typical	10 000 000
At AC-15 at 250 V typical	100 000
Thermal current	6 A
Net Weight	0.035 kg
Control supply voltage at DC rated value	24 V
Weight	0.035 kg
Country of Origin	DE

Certifications & Standards

EN 50121-3

Applications & Use Cases

The Siemens 3RQ4018-2AM08-0AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RQ4 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

Rated Voltage (VAC)

24V

Catalog No

3RQ4018-2AM08-0AA0

Standards

EN 50121-3

Delivery Date (Days)

1-2 days

Model Number

3RQ4
