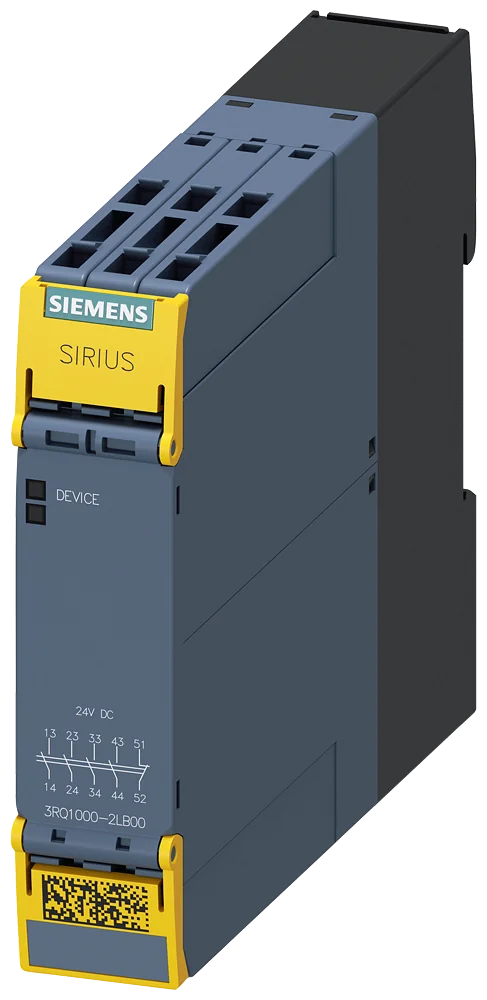

Siemens 3RQ1000-2LB00 3RQ1 24V Relay

Name: Siemens 3RQ1000-2LB00 3RQ1 24V Relay
Brand: Siemens
SKU: 3RQ1000-2LB00
Price: 119.9 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RQ1000-2LB00

Catalog No: 3RQ1000-2LB00

Series: 3RQ1

Rated Voltage: 24V

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$119.90

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3RQ1000-2LB00 is a relay from the SENTRON/SIRIUS 3RQ1 series. Positively driven coupling relay in industrial enclosure 4 NO contacts / 1 NC contact 24 V DC SIL 2 / PL c spring-type terminal (push-in). Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RQ1000-2LB00
Brand	Siemens
Series	3RQ1
Product Type	Relay
Consumed active power	1.3 W
Degree of pollution	3
Surge voltage resistance rated value	4 kV
According to IEC 60068-2-27	11 g / 15 ms
According to IEC 60068-2-6	10 ... 55 Hz: 0.35 mm
Operating frequency maximum	360 1/h
Switching behavior	monostable
Mechanical service life (operating cycles) typical	10 000 000
Net Weight	0.189 kg
Suitability for operation device connector 3ZY12	Yes
Control supply voltage at DC rated value	24 V
Initial value	0.8
Full-scale value	1.2
At AC maximum	15 ms
At DC maximum	15 ms
OFF-delay time maximum	35 ms
Design of the switching function	NC contact and NO contact
Product component plug-in socket	No
Weight	0.189 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3RQ1000-2LB00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RQ1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

24V

Catalog No

3RQ1000-2LB00

Delivery Date (Days)

1-2 days

Model Number

3RQ1

Siemens 3RQ1000-2LB00 3RQ1 24V Relay

Technical Specifications

Applications & Use Cases

Technical Details
