Siemens 3RP2574-1NW30 3RP2 240V Relay

Name: Siemens 3RP2574-1NW30 3RP2 240V Relay
Brand: Siemens
SKU: 3RP2574-1NW30
Price: 63.63 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RP2574-1NW30

Catalog No: 3RP2574-1NW30

Series: 3RP2

Rated Voltage: 240V

Stock: 161

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$63.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

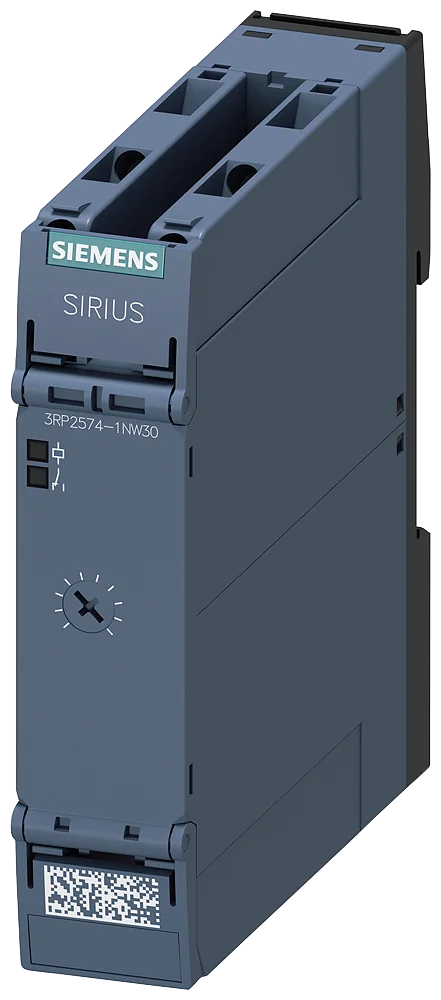

The Siemens 3RP2574-1NW30 is a relay from the SENTRON/SIRIUS 3RP2 series. Timing relay, electronic with star-delta (wye-delta) function 1 NO delayed 1 NO instantaneous 1 time range, 1...20 s 12-240 V AC/DC at 50/60 Hz AC screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RP2574-1NW30
Brand	Siemens
Series	3RP2
Product Type	Relay
Relay output	Yes
Semi-conductor output	No
Product extension required remote control	No
Product extension optional remote control	No
Power loss [W] maximum	2 W
Test voltage for isolation test	2.5 kV
Degree of pollution	3
Surge voltage resistance rated value	4 000 V
Shock resistance according to IEC 60068-2-27	11 g / 15 ms
Vibration resistance according to IEC 60068-2-6	10 ... 55 Hz / 0.35 mm
Mechanical service life (operating cycles) typical	10 000 000
Adjustable time	1 ... 20 s
Relative setting accuracy relating to full-scale value	5 %; +/-
Thermal current	5 A
Recovery time	250 ms
Relative repeat accuracy	1 %; +/-
Influence of the surrounding temperature	1% in the whole temperature range to the set runtime
Power supply influence	1% in the whole voltage range to the set runtime
Weight	0.151 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3RP2574-1NW30 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RP2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

240V

Catalog No

3RP2574-1NW30

Delivery Date (Days)

1-2 days

Model Number

3RP2

Siemens 3RP2574-1NW30 3RP2 240V Relay

Technical Specifications

Applications & Use Cases

Technical Details
