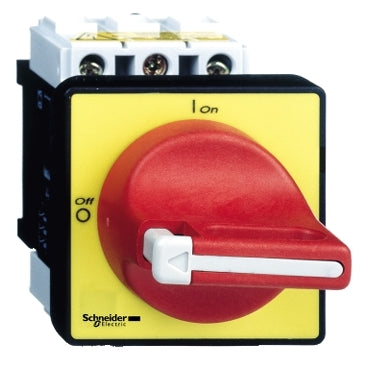

Schneider Electric VCF0 VCF TeSys VARIO 3P 25A 690V 5.5kW Emergency Stop Switch Disconnector

The Schneider Electric VCF0 (Model VCF) TeSys VARIO emergency stop switch disconnector is a 3-pole, 25A, 690V AC door-mounted safety isolation device designed for industrial machinery and control panels requiring compliant emergency stop and disconnection functionality. Rated for 5.5kW at 400–415V (AC-3) and with a breaking capacity of 200A at 400V (AC-23A), the VCF0 delivers robust performance in demanding automation environments. Its compact 60×60mm base footprint and 4-screw door-mounting system make it straightforward to integrate into standard enclosures.

Technical Specifications

Certifications & Standards

• IEC 60947-3: International standard for switches, disconnectors, switch-disconnectors and fuse-combination units
• CSA: Canadian Standards Association certification for North American markets
• CCG: China Compulsory Certification Group compliance
• LUL: London Underground Limited approval for transit infrastructure applications
• UKCA: UK Conformity Assessed marking for Great Britain market access post-Brexit
• IEC 60529: Degrees of protection provided by enclosures (IP rating classification)
• IEC 60068-2-6: Environmental testing — vibration (sinusoidal) compliance
• IEC 60068-2-27: Environmental testing — shock resistance compliance
• IEC 60695-2-1: Fire hazard testing — glow-wire flammability compliance
• RoHS: Restriction of Hazardous Substances Directive compliance (EU)
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
• China RoHS: Chinese restriction of hazardous substances in electronic products
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• Halogen Free: Manufactured without halogenated flame retardants or plasticisers

Applications & Use Cases

• Emergency stop and isolation of motors up to 5.5kW on industrial machinery
• Door-mounted disconnection points on control panels and enclosures
• Safety isolation in manufacturing, packaging, and material handling equipment
• Machine tool and conveyor system emergency stop circuits
• Applications requiring IEC 60947-3 compliant switch-disconnector functionality
• London Underground and transit infrastructure installations (LUL approved)
