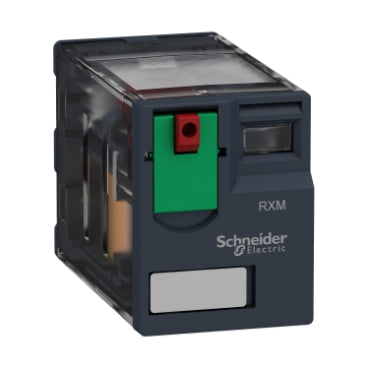

Schneider Electric RXM3AB1B7 RXM 3-Pole 10A 250V AC Plug-in Relay Harmony Miniature Series

The Schneider Electric RXM3AB1B7 is a plug-in relay from the Harmony Electromechanical Relays – Miniature series, delivering reliable switching performance in a compact form factor. This 3-pole relay is rated at 10A and 250V AC, designed for plug-in mounting to simplify installation and field replacement in industrial control panels and automation systems. Weighing just 37g and measuring 79mm in height, the RXM3AB1B7 is engineered for high-density panel layouts where space and reliability are paramount.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UL: Underwriters Laboratories listed per UL 508 for industrial control equipment
• CSA: Canadian Standards Association certified per CSA C22.2 No 14
• GOST: Russian/CIS market certification for electrical safety conformance
• Lloyd's: Lloyd's Register type approval for marine and offshore applications
• EN/IEC 61810-1: Electromechanical elementary relays — general requirements
• UL 508: Standard for industrial control equipment
• CSA C22.2 No 14: Canadian standard for industrial control equipment
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliance with EU REACH regulation on chemical substances
• China RoHS: Compliance with Chinese restriction of hazardous substances regulation
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• IP40: Ingress protection rating conforming to EN/IEC 60529 — protected against solid objects >1mm

Applications & Use Cases

• Industrial control panels and machine automation cabinets requiring compact relay solutions
• PLC output interface and signal amplification in automation systems
• HVAC and building management system control circuits
• Process control and manufacturing equipment interlock circuits
• Marine and offshore control systems (Lloyd's approved)
• High-density DIN rail panel builds where plug-in replacement is operationally critical
