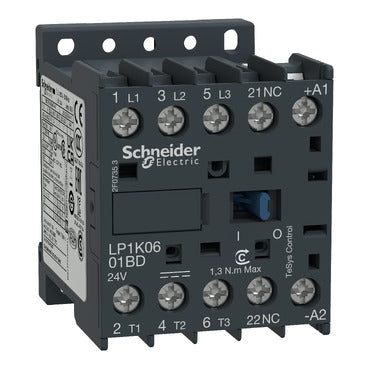

Schneider Electric LP1K0601BD TeSys K 3-Pole 6A 440V 24V DC Coil Contactor

The Schneider Electric LP1K0601BD is a TeSys K series 3-pole contactor rated at 6A and 440V AC, designed for the switching and control of small motors and resistive loads in industrial and commercial applications. Featuring a 24V DC control coil, the LP1K0601BD offers reliable, low-power coil operation suited to PLC-driven control systems. Its compact DIN rail-mountable footprint makes it ideal for space-constrained control panels.

Technical Specifications

Applications & Use Cases

• Motor Switching: Suitable for starting and stopping small 3-phase motors in AC-3 utilization category applications.
• PLC-Controlled Systems: 24V DC coil voltage is directly compatible with standard PLC output modules, enabling seamless automation integration.
• Resistive & Inductive Loads: Handles both resistive (AC-1) and inductive motor loads (AC-3) across a variety of industrial machinery.
• Control Panels: Compact DIN rail design fits neatly into space-constrained switchboards and motor control centers.
• HVAC & Building Services: Frequently deployed in fan, pump, and compressor control circuits in commercial building installations.

Frequently Asked Questions

• What is the coil voltage of the LP1K0601BD? The control coil operates on 24V DC, making it directly compatible with most PLC output cards.
• What is the rated current of this contactor? The LP1K0601BD is rated at 6A at 440V AC.
• How many poles does this contactor have? It is a 3-pole contactor, suitable for 3-phase motor and load control circuits.
• Which series does the LP1K0601BD belong to? It belongs to the Schneider Electric TeSys K series, a compact contactor range for low-power applications.
