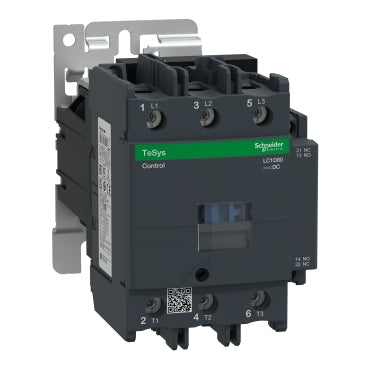

Schneider Electric LC1D80BD TeSys Deca 3-Pole 80A 60HP 24VDC Coil Power Contactor

The Schneider Electric LC1D80BD is a TeSys Deca series 3-pole power contactor rated at 80A and 60HP, designed for demanding motor control and power switching applications. With a 24VDC control coil and a rated operational voltage of 480V AC, the LC1D80BD delivers a robust short-circuit current rating (SCCR) of 100 kA, making it a reliable choice for industrial motor starter circuits and panel-builders requiring high fault-current protection.

Technical Specifications

Applications & Use Cases

• Motor Control: Direct-on-line (DOL) starting and switching of three-phase AC motors up to 60HP in industrial environments.
• Panel Building: Integration into motor control centres (MCCs) and distribution panels requiring high SCCR ratings.
• HVAC Systems: Switching of large fan and pump motors in commercial and industrial HVAC installations.
• Conveyor & Material Handling: Reliable control of conveyor belts, hoists, and material handling equipment driven by motors up to 80A.
• Compressor Control: Suitable for compressor motor switching in manufacturing and process industries.

Frequently Asked Questions

• What is the coil voltage of the LC1D80BD? The LC1D80BD uses a 24V DC control coil, suitable for PLC-driven and low-voltage DC control circuits.
• What is the SCCR rating? The LC1D80BD carries a Short-Circuit Current Rating (SCCR) of 100 kA, indicating suitability for high fault-current installations.
• How many poles does the LC1D80BD have? It is a 3-pole contactor, designed for three-phase power switching.
• What motor size can the LC1D80BD control? It is rated for motors up to 60HP at 480V AC, making it suitable for medium to large industrial motor applications.
• Can auxiliary contacts be added to the LC1D80BD? TeSys Deca contactors in the LC1D range support a wide range of add-on auxiliary contact blocks and accessories — consult the TeSys Deca accessory range for compatible modules.
