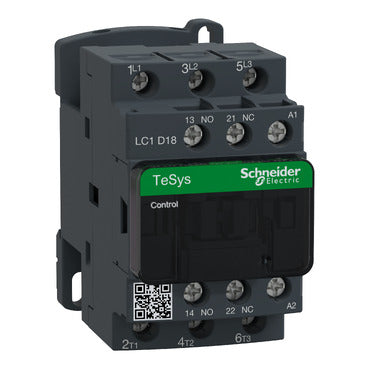

Schneider Electric LC1D18F7 TeSys Deca 3-Pole 18A 10HP 480V AC Coil Contactor

The Schneider Electric LC1D18F7 is a TeSys Deca series 3-pole AC contactor rated at 18A with a 10HP motor load capacity at 480V AC, designed for reliable motor switching and industrial power control applications. With a 100kA SCCR short-circuit current rating, the LC1D18F7 delivers robust protection in demanding installations. Weighing just 0.378 kg, this compact contactor integrates seamlessly into motor control centers, control panels, and distribution boards.

Technical Specifications

Applications & Use Cases

• Motor Starting & Switching: Suitable for AC-3 duty motor control up to 10HP at 480V AC in industrial machinery and HVAC systems.
• Motor Control Centers (MCC): The LC1D18F7 is a standard building block in MCC panels for factory automation and process control.
• Pump & Fan Control: Reliable switching for pump stations, ventilation fans, and compressor systems requiring frequent operation cycles.
• Power Distribution Panels: Used in industrial distribution boards where a compact, high-SCCR contactor is required for load switching.
• OEM Machine Builders: Lightweight and DIN-rail-compatible design makes the LC1D18F7 a preferred choice for OEM panel builders requiring proven Schneider Electric reliability.

Frequently Asked Questions

• What is the rated current of the LC1D18F7? The LC1D18F7 is rated at 18A continuous current.
• What motor horsepower can the LC1D18F7 handle? It is rated for 10HP at 480V AC.
• What is the SCCR of the LC1D18F7? The short-circuit current rating (SCCR) is 100 kA.
• Which series does the LC1D18F7 belong to? It belongs to the Schneider Electric TeSys Deca series of contactors.
• How many poles does the LC1D18F7 have? It is a 3-pole contactor.
