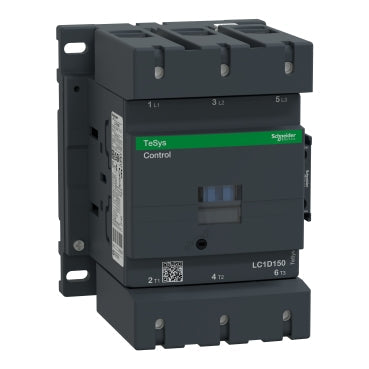

Schneider Electric LC1D150M7 TeSys Deca 3-Pole 150A 480V AC 100HP Power Contactor

The Schneider Electric LC1D150M7 is a TeSys Deca series 3-pole power contactor rated at 150A and 480V AC, designed for controlling motors up to 100HP in industrial power distribution and motor control applications. Built for demanding environments, the LC1D150M7 delivers a breaking capacity of 100 kA and features an open-type mounting configuration suitable for panel builders and OEM integrators. The LC1D series is a trusted solution for AC-3 motor switching, offering reliable performance in variable-duty industrial cycles.

Technical Specifications

Applications & Use Cases

• Motor Control Centers (MCC): Ideal for switching and controlling three-phase induction motors up to 100HP in MCC assemblies.
• Industrial Machinery: Used in compressors, conveyors, pumps, and fans requiring reliable high-current switching.
• Panel Builders & OEM Systems: Open mounting design makes the LC1D150M7 easy to integrate into custom control panels and switchgear assemblies.
• Power Distribution: Suitable for AC-3 utilization category applications where frequent starting and stopping of squirrel-cage motors is required.

Frequently Asked Questions

• What utilization category is the LC1D150M7 rated for? The LC1D150M7 is designed for AC-3 utilization category, making it suitable for direct-on-line starting of squirrel-cage motors.
• What is the breaking capacity of the LC1D150M7? It has a breaking capacity of 100 kA, ensuring robust short-circuit protection capability.
• What is the rated motor power for this contactor? The LC1D150M7 is rated for 100HP (approximately 75 kW) motor loads at 480V AC.
• What mounting type does the LC1D150M7 use? It features an open mounting type, suitable for DIN rail or panel mounting configurations depending on the accessory used.
