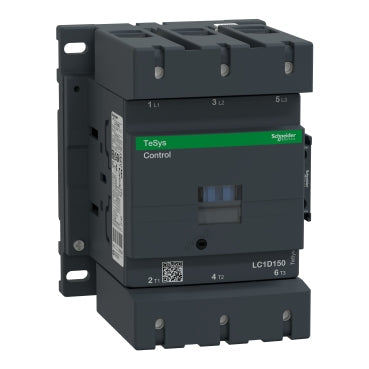

Schneider Electric LC1D150BD TeSys Deca 3-Pole 150A 480V AC 24V DC Coil Power Contactor

The Schneider Electric LC1D150BD is a TeSys Deca series 3-pole power contactor rated at 150A and 480V AC, designed for demanding motor control and power switching applications up to 100HP. With a 24V DC control coil and a robust 100 kA breaking capacity, the LC1D150BD delivers reliable performance in industrial automation, HVAC, pump, and compressor control panels. Weighing 2.5 kg, this contactor is engineered for switchboard and DIN-rail installations where space efficiency and operational durability are critical.

Technical Specifications

Applications & Use Cases

• Motor Control: Ideal for starting, stopping, and reversing large AC motors up to 100HP in industrial environments.
• HVAC Systems: Suitable for controlling compressors, air handling units, and large fan motors in commercial and industrial HVAC installations.
• Pump & Compressor Control: Used in water treatment plants, oil & gas facilities, and process industries for reliable pump and compressor switching.
• Power Distribution Panels: Integrates into MCC (Motor Control Centers) and switchboard assemblies requiring high-current switching capability.
• Automation Systems: Compatible with PLC-driven control architectures requiring a 24V DC coil signal for switching heavy loads.
