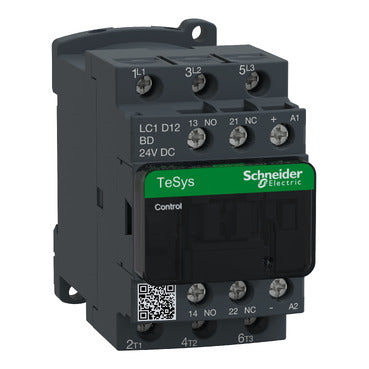

Schneider Electric LC1D12BD TeSys Deca 3-Pole 12A 480V AC 7.5HP 24VDC Coil Power Contactor

The Schneider Electric LC1D12BD is a TeSys Deca series 3-pole power contactor rated at 12A and 480V AC, delivering reliable motor switching for loads up to 7.5HP with a robust 100kA SCCR. Designed for demanding industrial motor control applications, the LC1D12BD operates on a 24VDC coil and offers compact, DIN-rail-compatible construction suited for panel builders and OEM machine builders alike.

Technical Specifications

Applications & Use Cases

• Motor Control Centers (MCC): Switching and controlling three-phase AC induction motors up to 7.5HP in industrial panels.
• Pump & Fan Control: Reliable ON/OFF switching for HVAC fans, water pumps, and cooling systems requiring 12A load management.
• Conveyor & Machine Tool Automation: Used in automated production lines where consistent 3-pole switching with high SCCR protection is critical.
• OEM Machine Building: Compact TeSys Deca form factor fits tight panel layouts; the 24VDC coil integrates directly with PLC outputs without additional relays.
• Reversing Starter Combinations: Pairs with matching LC1D contactors and LRD overload relays to form complete IEC motor starter assemblies.
