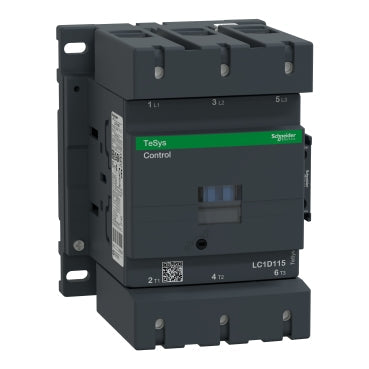

Schneider Electric LC1D115M7 TeSys Deca 3P 115A 55kW AC-3 Contactor

The Schneider Electric LC1D115M7 is a TeSys Deca series 3-pole power contactor rated at 115 A (AC-3, ≤440 V, below 60 °C) with a 55 kW motor power rating at 380–400 V AC 50/60 Hz, designed for demanding industrial motor switching and load control applications. Built to IEC 60947-4-1 and UL 508 standards, the LC1D115M7 delivers a breaking capacity of 1100 A at 440 V, making it a robust and reliable choice for engineers specifying high-current motor starter circuits. With a wide voltage tolerance up to 1000 V AC at 25–400 Hz, rail or plate mounting flexibility, and a comprehensive global certification portfolio, the LC1D115M7 suits a broad range of industrial environments worldwide.

Technical Specifications

Certifications & Standards

• IEC 60947-4-1: Low-voltage switchgear — electromechanical contactors and motor-starters
• IEC 60947-5-1: Low-voltage switchgear — control circuit devices and switching elements
• IEC 60947-1: Low-voltage switchgear and controlgear — general rules
• EN 60947-4-1: European harmonized standard for contactors and motor-starters
• EN 60947-5-1: European harmonized standard for control circuit devices
• EN/ISO 13849-1: Safety of machinery — safety-related parts of control systems
• UL 508: Industrial Control Equipment (UL listed)
• UL: Underwriters Laboratories general listing
• UKCA: UK Conformity Assessed marking for Great Britain market
• CSA: Canadian Standards Association certification
• CSA C22.2 No 14: Industrial Control Equipment — Canadian standard
• CCC: China Compulsory Certification
• CB: IECEE CB Scheme — international safety certification
• GOST: Russian/CIS conformity certification
• VL / DNV / GL / RINA / ROS (Lloyd's Register of Shipping) / IACS E10: Marine and offshore approvals for shipboard electrical equipment
• IEC 60529: Degrees of protection provided by enclosures (IP ratings)
• IEC 60068-2-30: Environmental testing — damp heat cyclic test
• IEC 60695-2-1: Fire hazard testing — glow-wire flammability
• UL94 V1: Flammability rating for plastic materials
• RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU compliant
• WEEE: Waste Electrical and Electronic Equipment Directive compliant
