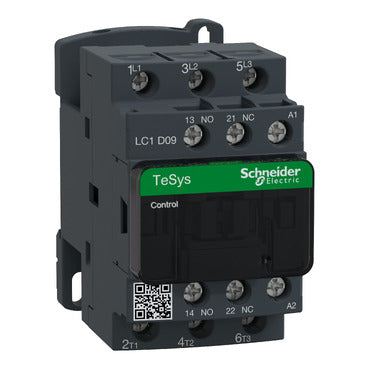

Schneider Electric LC1D09E7 TeSys Deca 3-Pole 9A 480V AC Coil 5HP Power Contactor

The Schneider Electric LC1D09E7 is a TeSys Deca series 3-pole power contactor rated at 9A and 480V AC, designed for reliable motor switching and control in industrial applications. With a 5HP power rating and an impressive 100kA SCCR (Short Circuit Current Rating), this AC contactor delivers robust performance in demanding environments. It is an ideal motor starter contactor for use in machine control panels, HVAC systems, and industrial automation.

Technical Specifications

Certifications & Standards

• IEC: Designed and tested in accordance with IEC standards for industrial contactors and motor control equipment, ensuring safety and interoperability in global installations.

Applications & Use Cases

• Motor starting and switching in industrial machinery and conveyor systems
• HVAC and refrigeration compressor control
• Pump and fan motor control panels
• Factory automation and process control switchgear
• Light and capacitor bank switching

Frequently Asked Questions

What is the coil voltage of the LC1D09E7?
The LC1D09E7 contactor has a coil voltage of 480V AC, making it suitable for direct integration into 480V power systems without an additional control transformer.

What motor power can the LC1D09E7 handle?
This TeSys Deca contactor is rated for up to 5HP motor loads at 480V AC, suitable for small to medium industrial motor applications.

Is the LC1D09E7 IEC certified?
Yes, the LC1D09E7 is designed and tested in compliance with IEC standards for contactors and motor starters.

What is the SCCR of the LC1D09E7?
The Short Circuit Current Rating (SCCR) is 100 kA, providing robust protection in high-fault-current environments.
