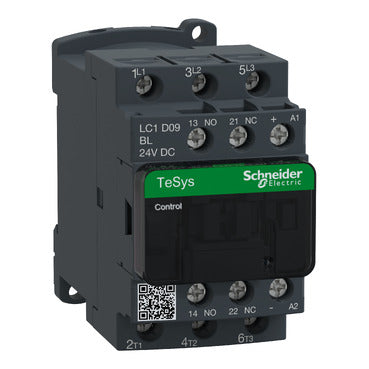

Schneider Electric LC1D09BL TeSys Deca 3-Pole 9A 480V AC 100kA Contactor

The Schneider Electric LC1D09BL is a TeSys Deca series 3-pole contactor rated at 9A and 480V AC, designed for reliable motor switching and control in industrial applications. With a breaking capacity of 100 kA and a 5HP power rating, the LC1D09BL delivers robust performance for motor starter and power switching duties. Weighing just 0.32 kg, this compact contactor is well-suited for panel builders and OEMs requiring high-density installations.

Technical Specifications

Applications & Use Cases

• Motor Control: Ideal for switching and controlling AC induction motors up to 5HP in industrial environments.
• Motor Starter Assemblies: Commonly used in direct-on-line (DOL) and star-delta motor starter configurations.
• Power Switching: Suitable for resistive and inductive load switching in control panels and distribution boards.
• OEM & Panel Building: Compact form factor makes the LC1D09BL an excellent choice for high-density control panel designs.
