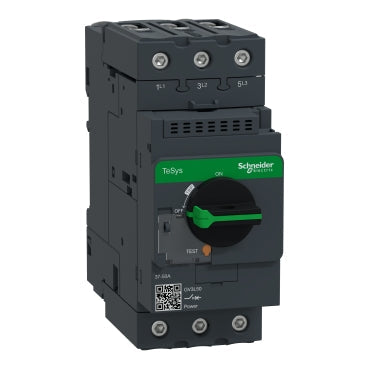

Schneider Electric GV3L50 GV3P 3P 50A 50kA 690V TeSys Deca Manual Motor Starter Circuit Breaker

The Schneider Electric GV3L50 (model GV3P) is a 3-pole 50A manual motor starter and circuit breaker from the TeSys GV3 / TeSys Deca series, rated for 690V AC 50/60 Hz with an exceptional breaking capacity of 50 kA at 400/415V AC. Designed for motor protection in industrial control panels, the GV3L50 provides thermal-magnetic protection for motors up to 22 kW at 400/415V, 30 kW at 500V, and 45 kW at 690V, making it a versatile solution across a wide range of drive applications.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers
• EN/IEC 60947-4-1: Low-voltage switchgear — electromechanical contactors and motor starters
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• CSA C22.2 No 60947-4-1: Canadian standard for contactors and motor starters
• UL 60947-4-1: UL standard for contactors and motor starters
• IECEE CB Scheme: International mutual recognition of safety test results
• UL: Underwriters Laboratories listed
• CSA: Canadian Standards Association certified
• CCC: China Compulsory Certification
• EAC: Eurasian Conformity mark
• ABS: American Bureau of Shipping approved
• LR (Lloyd's Register of Shipping): Marine type approval
• DNV-GL: Det Norske Veritas – Germanischer Lloyd marine approval
• BV: Bureau Veritas marine type approval
• UKCA: UK Conformity Assessed mark for Great Britain market
• RoHS: Restriction of Hazardous Substances compliant
• REACH: EU chemical safety regulation compliant
• China RoHS: Chinese restriction of hazardous substances compliant
• WEEE: Waste Electrical and Electronic Equipment directive compliant
• IEC 60529: Degrees of protection provided by enclosures (IP rating)
• IEC 60068-2-27: Environmental testing — shock
• IEC 60068-2-6: Environmental testing — vibration sinusoidal
• IEC 60695-2-1: Fire hazard testing — glow-wire method

Applications & Use Cases

• Direct-on-line motor starting and protection for motors up to 45 kW
• Industrial control panels in manufacturing, process automation, and HVAC
• Marine and offshore electrical installations (ABS, LR, DNV-GL, BV approved)
• OEM machine builders requiring IEC and UL dual-certified protection devices
• DIN rail or panel-mounted motor feeder circuits in MCC (Motor Control Centers)
