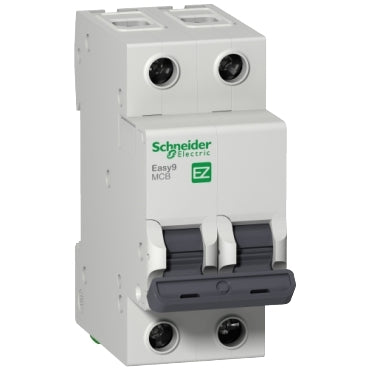

Schneider Electric EZ9F34216 Easy9 MCB 2P 16A 4500A Type C Miniature Circuit Breaker

The Schneider Electric EZ9F34216 Easy9 miniature circuit breaker is a 2-pole, 16 A MCB rated at 230 V with a breaking capacity of 4500 A, designed for reliable overcurrent and short-circuit protection on DIN rail installations in residential, commercial, and light industrial applications. Part of the Easy9 series, SKU EZ9F34216 delivers straightforward, cost-effective circuit protection in a compact modular format that integrates seamlessly into standard distribution boards.

Technical Specifications

Applications & Use Cases

• Residential distribution boards: Protects final circuits such as lighting and socket outlets in homes and apartments.
• Light commercial installations: Suitable for small offices, retail units, and similar low-voltage distribution systems.
• Modular panel builds: Compact DIN rail form factor fits standard modular enclosures alongside RCDs and other Easy9 devices.
• Overcurrent & short-circuit protection: Provides both thermal and magnetic trip functions to safeguard wiring and connected equipment.

Frequently Asked Questions

What is the breaking capacity of the EZ9F34216?

The Schneider Electric EZ9F34216 has a rated breaking capacity (Icu) of 4500 A, making it suitable for standard residential and light commercial supply networks.

How wide is the Easy9 MCB EZ9F34216?

As a 2-pole DIN rail modular circuit breaker, the EZ9F34216 occupies 2 module widths on a standard 35 mm DIN rail.

Is the EZ9F34216 compatible with other Easy9 accessories?

Yes. The Easy9 series supports auxiliary contacts, alarm contacts, and other modular accessories designed for the Easy9 platform.

What is the rated voltage of this MCB?

The EZ9F34216 is rated at 230 V AC, appropriate for single-phase residential and light commercial circuits.
