Schneider Electric ZENL1111 Harmony XAL/XAPS 22 mm Contact Block 1 NO Screw Clamp Automation Component

% $-4.04

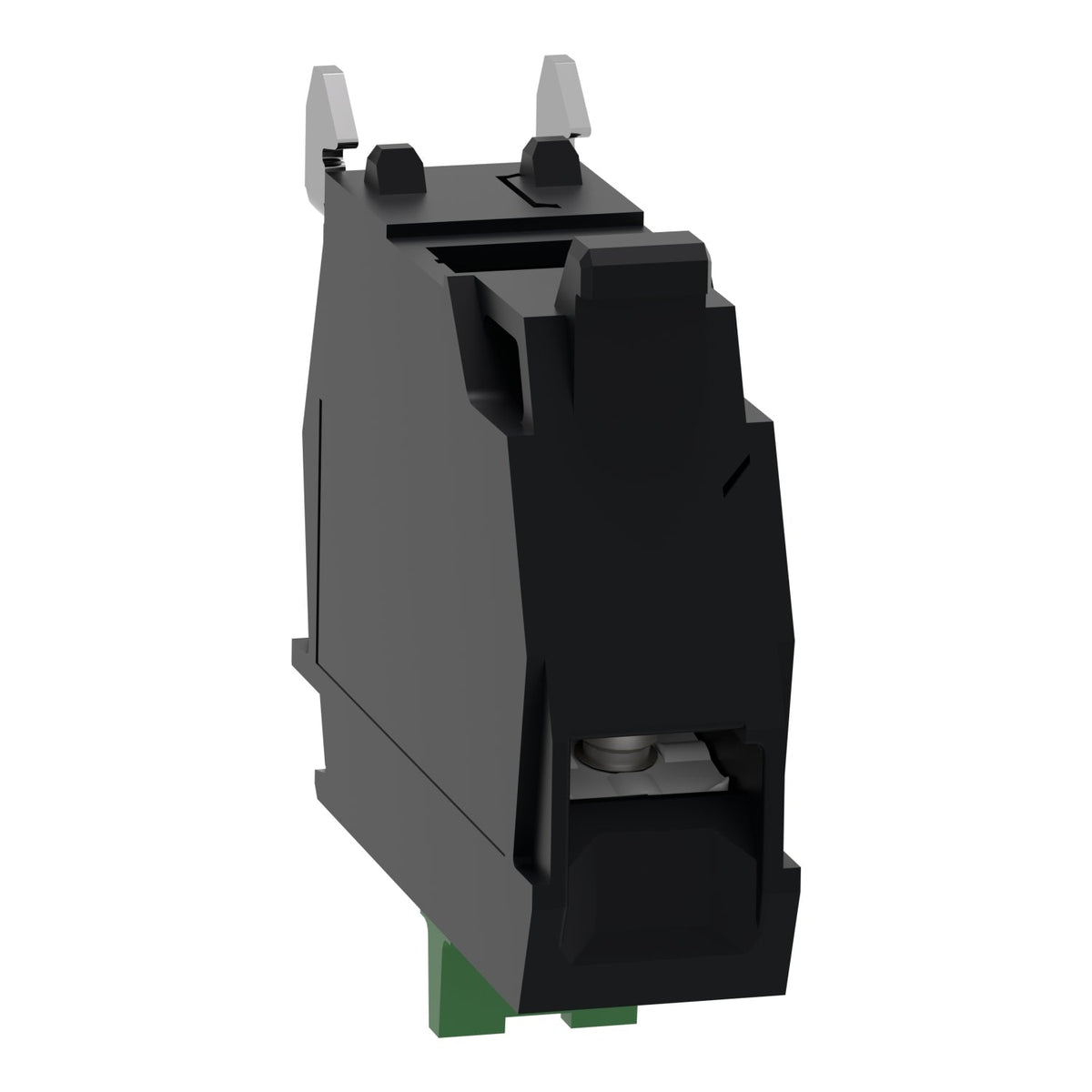

Schneider Electric ZENL1111 Harmony contact block - 1 NO screw clamp 22 mm
Schneider Electric ZENL1111 Harmony contact block - 1 NO screw clamp 22 mm

Schneider Electric ZENL1111 Harmony XAL/XAPS 22 mm Contact Block 1 NO Screw Clamp Automation Component

Brand: Schneider Electric
Reference No: ZENL1111
Catalog No: ZENL1111
Series: Harmony XAL | Harmony XAPS
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZENL1111 is a rear-mounting contact block for Harmony XB5 22 mm control heads and XAPS control stations, carrying 1 NO contact wired through screw-clamp terminals. It is rated 10 A Ith with a 600 V insulation voltage, for assembly into a push-button, selector-switch or pilot-light unit on the customer's own production line.

Technical Specifications

Reference ZENL1111
Brand Schneider Electric
GTIN 3389110115079
Range of Product Harmony XAL / Harmony XAPS
Device Short Name ZENL
Product Destination XB5 22 mm control unit / XAPS control station
Contacts Type and Composition 1 NO
Mounting of Block Rear mounting
Contact Operation Slow-break
Connections - Terminals Screw clamp, <= 2 x 1.5 mm² / >= 1 x 0.22 mm²
Contacts Material Silver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current 10 A
[Ui] Rated Insulation Voltage 600 V
[Ie] Rated Operational Current 3 A 240 V AC-15 / 6 A 120 V AC-15 / 1.2 A 600 V AC-15
IP Degree of Protection IP20
Net Weight 0.015 kg

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-1
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • JIS C8201-1

Selection Notes

Slow-break, 1 NO switching with screw-clamp terminals suits panels that are wired with ferruled stranded cable and serviced with a screwdriver rather than push-in tooling. The 10 A Ith rating and 600 V insulation voltage set the block up for low-voltage control circuits well beyond the 240 V AC-15 operational rating. Pick the 1 NC version instead where the circuit needs to open, not close, on actuation.

Technical Details

Short Description
Harmony 22 mm contact block, 1 NO, screw clamp terminals, 10 A Ith, rear mounting.
Mounting Type
Rear mounting
Protection Type
IP20
Catalog No
ZENL1111
Delivery Date (Days)
30 days
Model Number
ZENL
Tariff Code
853890
