- Part number
- ZBY1101
Harmony XB5 | Harmony XB4Schneider Electric ZBY1101 Harmony XB4/XB5 Sheet of 66 Blank Circular Legends 22 mm Automation Component
Sheet of 66 self-adhesive blank circular legends for Harmony XB4/XB5 22 mm heads.
Description
About the ZBY1101
About the ZBY1101

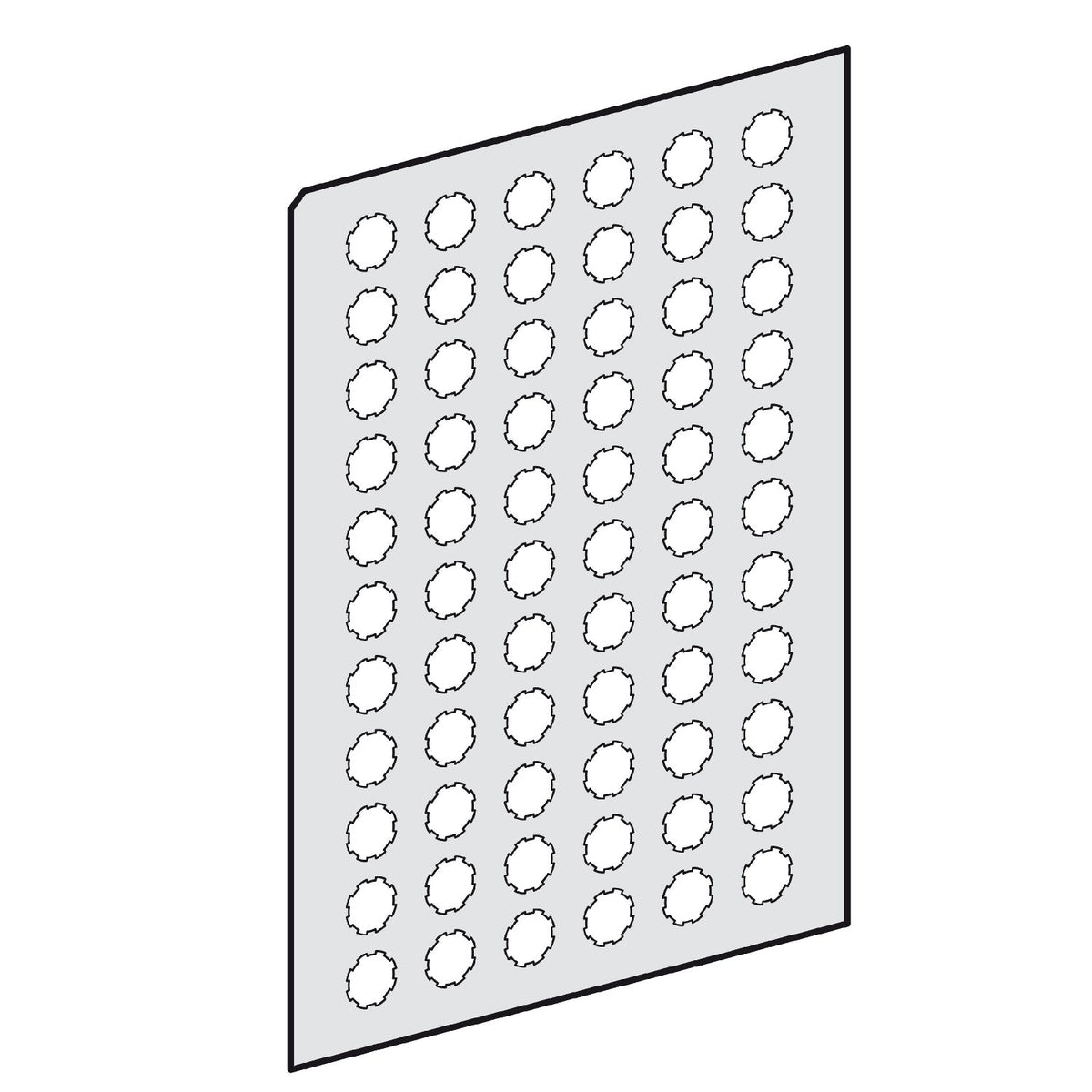

The Schneider Electric ZBY1101 is a peel-off sheet of 66 self-adhesive, unmarked circular legends sized for Harmony XB4 and XB5 22 mm push-button and pilot-light heads. Made of plastic and sold in packs of 10 sheets, each legend can be engraved on site and pressed onto a head individually, letting a panel builder label every control function on the machine from one stock item.
Applications
This sheet suits panel builders who keep a single stock item on hand for ad hoc control-function labelling across a production run, rather than ordering a pre-printed plate for every function. It fits any standard Harmony XB4 or XB5 22 mm head with a round legend window, and is sold in packs of 10 sheets.
Specification
Full specification
Main 7
| Range of Product | Harmony XB5, Harmony XB4 |
|---|---|
| Accessory / separate part designation | Blank |
| Accessory / Separate Part Type | Sheet of circular legend |
| Accessory / separate part category | Marking accessories |
| Accessory / separate part destination | Push-button, switch or pilot light, For standard head |
| Marking | unmarked |
| Sale per indivisible quantity | 10 |
Complementary 5
| Material | Plastic |
|---|---|
| Product Compatibility | XB5A, XB4B |
| Range Compatibility | Harmony XB4, Harmony XB5 |
| Net Weight | 0.037 lb(US) (0.017 kg) |
| Shape of signaling unit head | Round |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 42 specifications ↓ Show less ↑29 more values in Identification, Logistics.
Identification 7
| Part number | ZBY1101 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110098792 |
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.04 in (0.1 cm) |
| Package 1 Width | 8.7 in (22 cm) |
| Package 1 Length | 11.8 in (30 cm) |
| Package weight(Lbs) | 0.6 oz (16 g) |
| Unit Type of Package 2 | BAG |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 0.04 in (0.1 cm) |
| Package 2 Width | 8.7 in (22 cm) |
| Package 2 Length | 11.8 in (30 cm) |
| Package 2 Weight | 5.7 oz (162 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 5.9 in (15 cm) |
| Package 3 Width | 11.8 in (30 cm) |
| Package 3 Length | 15.7 in (40 cm) |
| Package 3 Weight | 4.202 lb(US) (1.906 kg) |
| Shipping weight | 0.017 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ZBY1101
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the ZBY1101
What is the HS code of ZBY1101 for customs?
The tariff (HS) code on file for ZBY1101 is 853890.
What is the EAN of ZBY1101?
The EAN (GTIN) of ZBY1101 is 3389110098792.
Where does ZBY1101 ship from, and how fast?
ZBY1101 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
