Schneider Electric ZBVB15 Harmony XB4/XB5 Light Block 22 mm Universal LED 24 V AC/DC Automation Component

% $-21.19

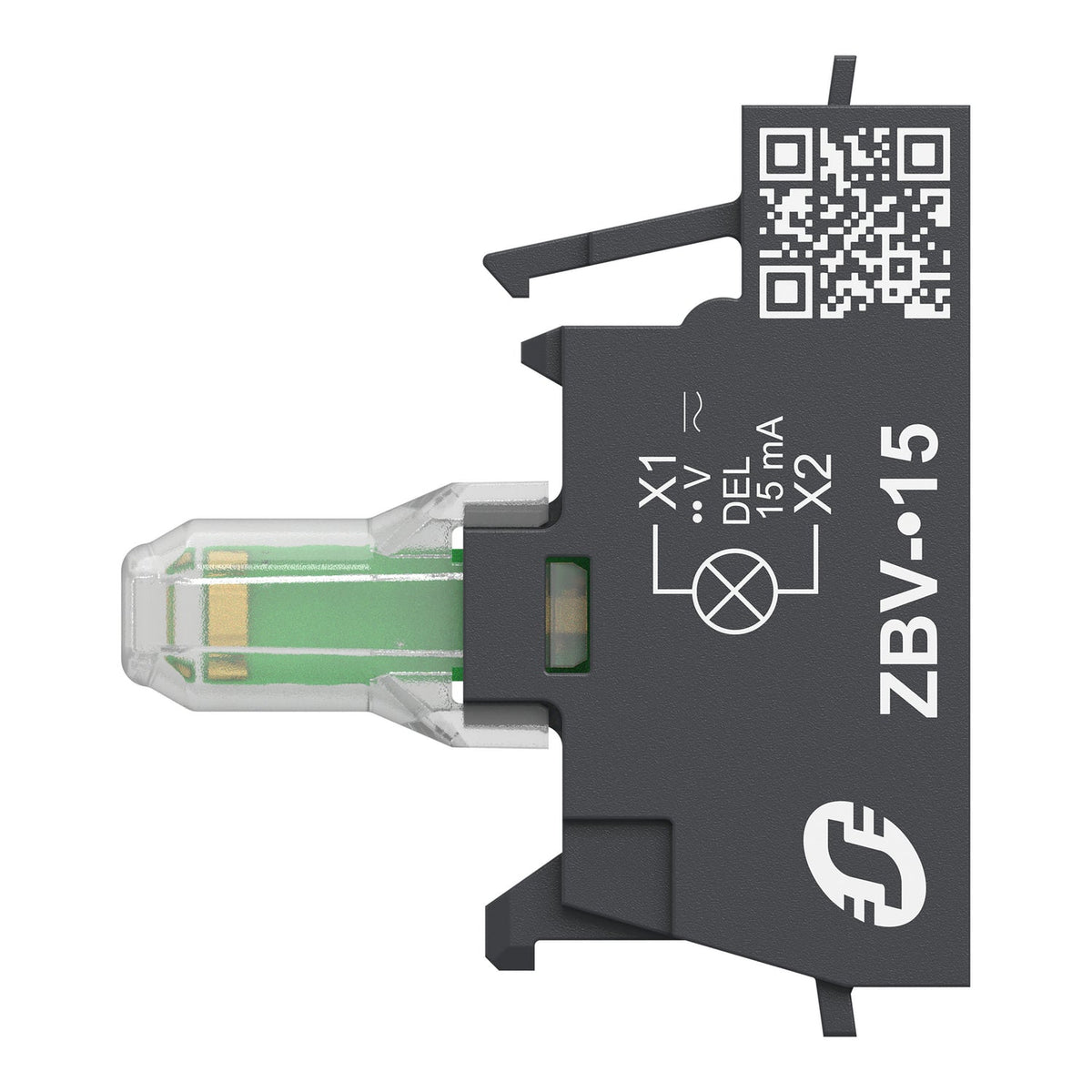

Schneider Electric ZBVB15 Harmony light block - 22 mm universal LED 24 V AC/DC
Schneider Electric ZBVB15 Harmony light block - 22 mm universal LED 24 V AC/DC

Schneider Electric ZBVB15 Harmony XB4/XB5 Light Block 22 mm Universal LED 24 V AC/DC Automation Component

Brand: Schneider Electric
Reference No: ZBVB15
Catalog No: ZBVB15
Series: Harmony XB4 | Harmony XB5
Tariff Code (HS): 853890
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$21.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZBVB15 is a Harmony XB4/XB5 light block for 22 mm pilot device heads, built around a universal LED and a 24 V AC/DC supply. It clips onto a compatible illuminated push-button or selector switch body and wires through push-in terminals, adding steady white signalling with IP20 protection.

Technical Specifications

Reference ZBVB15
Brand Schneider Electric
Range of Product Harmony XB4 / Harmony XB5
Product or Component Type Light block
Device Short Name ZBV
GTIN 3389119037495
Light Source Universal LED
Light Source Colour White
Rated Supply Voltage (Us) 24 V AC/DC 50/60 Hz
Supply Voltage Limits 20.4-26.4 V DC / 20.4-26.4 V AC
Current Consumption 15 mA
Connections - Terminals Push-in, <= 2 x 1.5 mm² with ferrule / >= 1 x 0.34 mm² without ferrule
IP Degree of Protection IP20
Ambient Air Temperature (Operation) -40...70 °C
Net Weight 0.005 kg

Certifications & Standards

  • EAC
  • CCC
  • UL
  • CSA
  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • IACS E10

Selection Notes

The universal-LED light source lets the ZBVB15 run anywhere in the 20.4-26.4 V AC/DC supply window without a dedicated lamp voltage code, simplifying stock for panels that mix AC and DC control circuits. Push-in terminals speed up replacement on existing XB4 or XB5 illuminated heads without a screwdriver. Choose a bulb-based ZBV variant instead only where the panel standardises on a specific incandescent or neon lamp rather than LED.

Technical Details

Short Description
Harmony XB4/XB5 light block, 22 mm, universal LED, 24 V AC/DC, push-in terminals.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
Front mounting
Protection Type
IP20
Catalog No
ZBVB15
Delivery Date (Days)
30 days
Model Number
ZBV
Tariff Code
853890
