- Part number
- ZBRV1
- Model no
- XB5R
- UL
- CSA
- EAC

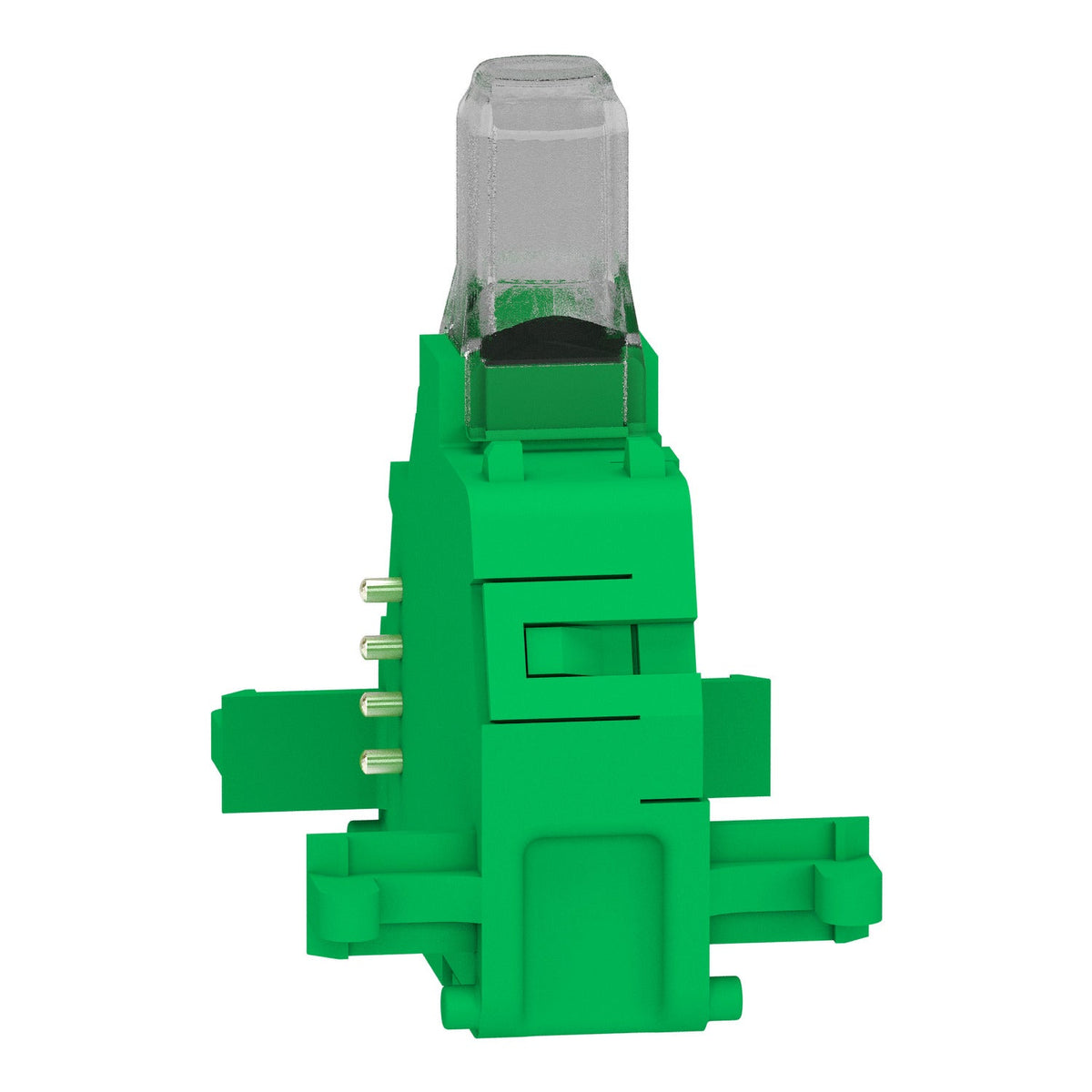

Harmony XB5RSchneider Electric ZBRV1 Harmony XB5R Visual Feedback Module for ZBRT Transmitters Automation Component
Harmony XB5R visual feedback module for ZBRT transmitters, blinking white LED.
Description
About the XB5R
About the XB5R
The Schneider Electric ZBRV1 is a visual feedback module for Harmony XB5R wireless and batteryless pushbuttons, fitting under a ZBRT transmitter to add a blinking white LED confirmation on a 3 V battery supply. It confirms that a button press was sent, without needing wiring back to the receiver.
Certifications & Standards
- CSA
- UL Listed
- EAC
- IEC 60947-1
- IEC 60947-5-1
Selection Notes
Add this module where the operator needs immediate confirmation that the wireless signal was transmitted — useful on noisy shop floors or where the receiver is out of the operator's sightline. It only fits a listed firmware version of ZBRRA/ZBRRC/ZBRRD receivers and ZBRA1/ZBRN1/ZBRN2 infrastructure, so confirm the installed receiver's version before specifying it.
Specification
Full specification
Main 6
| Range of Product | Harmony XB5R |
|---|---|
| Product or Component Type | Visual feedback |
| Device short name | XB5R |
| Light source colour | White |
| Product compatibility | ZBRRA - receiver V2.2 and above), ZBRRC - receiver V2.2 and above), ZBRRD - receiver V2.2 and above), ZBRA1 - antenna V3.3 and above), ZBRN1 - wireless access point V3.32 and above), ZBRN2 - wireless access point V3.32 and above) |
| Sale per indivisible quantity | 1 |
Complementary 11
| [Us] rated supply voltage | 3 V with battery |
|---|---|
| Signalling type | Blinking |
| Light source | Protected LED |
| Bulb base | Integral LED |
| Light block supply | Direct |
| Embedding Depth | 1.7 in (42 mm) |
| CAD overall height | 1.5 in (37.4 mm) |
| CAD overall width | 1.0 in (24.2 mm) |
| CAD overall depth | 1.6 in (39.6 mm) |
| Net Weight | 0.020 lb(US) (0.009 kg) |
| Standards | IEC 60947-1, IEC 60947-5-1 |
Environment 8
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| Relative humidity | 95 % 32…131 °F (0…55 °C) without condensation |
| Mechanical durability | 50000 cycles |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3 |
| Product Certifications | CSA, UL Listed, EAC |
Show all 39 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZBRV1 |
|---|---|
| Type designation | XB5R |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482035065 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.009 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ZBRV1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- EAC
- IEC 60947-1
- IEC 60947-5-1
Quick answers
Questions about the XB5R
What is the HS code of XB5R for customs?
The tariff (HS) code on file for XB5R is 853890.
What is the EAN of XB5R?
The EAN (GTIN) of XB5R is 3606482035065.
Where does XB5R ship from, and how fast?
XB5R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
