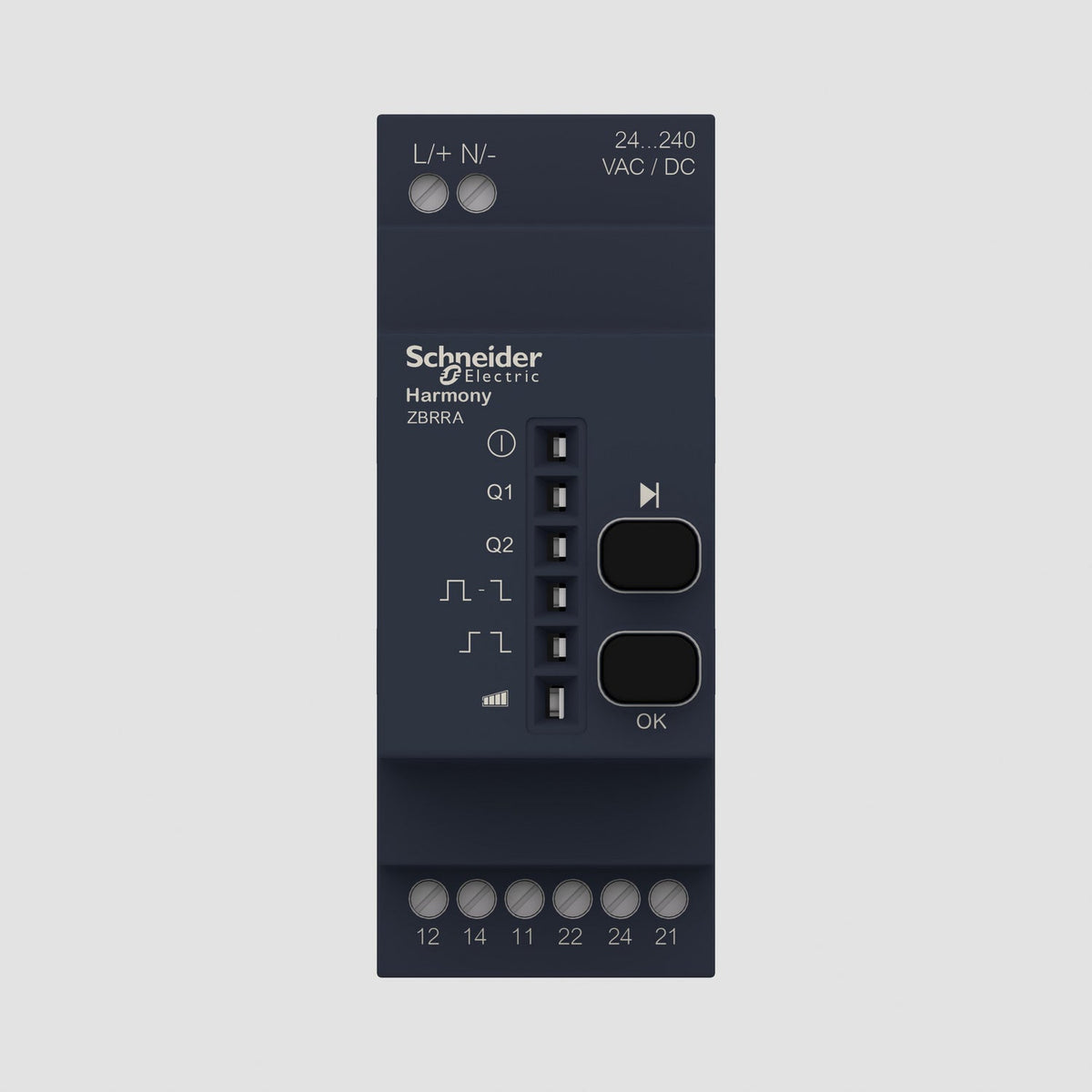

Harmony XB5RSchneider Electric ZBRRA Harmony XB5R Programmable Receiver 2 Relays 3 A 24...240 V AC/DC Control Unit
Harmony XB5R programmable receiver, 2 relays, 3 A, 24-240 V AC/DC, DIN rail.
Description
About the ZBRRA
About the ZBRRA
The Schneider Electric ZBRRA is a Harmony XB5R programmable receiver with 2 relay outputs (2 C/O, 3 A), DIN-rail mounted and supplied at 24...240 V AC/DC. It listens for radio frames from ZB5RTA or ZBRT wireless transmitters and switches its relays accordingly, set to monostable at the factory.
Certifications & Standards
- CE
- UL
- UKCA
- FCC
- IC
- CCC
- Giteki
- IEC 61010-1
- IEC 60947-1
- ETSI EN 300 328
- IEEE 802.15.4
Selection Notes
Its 2 relay outputs suit applications needing two independent switched circuits from wireless pushbuttons — for example separate start and stop relays, or two machine functions. It ships in monostable mode but can be reconfigured to bistable or stop/start logic with its teach button, so the same receiver covers several control schemes without rewiring. The 24...240 V AC/DC supply range avoids needing a matched transformer regardless of the panel's control voltage.
Specification
Full specification
Main 9
| Range of Product | Harmony XB5R |
|---|---|
| Product or Component Type | Programmable receiver |
| Device short name | ZBRRA |
| Product Specific Application | Interface to actuators |
| Function of module | Bi-stable, Monostable, Enable/disable |
| Reset time | 1 s time delay |
| Transmission frequency | 2405 MHz |
| Antenna type | Omnidirectional |
| Antenna gain | 0 dBi |
Complementary 27
| Nominal output current | 3 A |
|---|---|
| Output Type | 2 relays |
| Output contacts | 2 C/O |
| Input output isolation | Galvanic isolation |
| Time delay range | 0.5 s +/- 15 %) |
| Switching capacity in VA | 1250 VA |
| Maximum switching current | 3 A AC/DC |
| Maximum switching voltage | 250 V AC/DC |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz +/- 10 % |
| Maximum sensing distance | 328.08 ft (100 m) in free field, 49.2 ft (15 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure |
| Response Time | < 30 ms after transmitter clicks |
| Utilisation category | AC-15 : B300, DC-13 : R300 |
| Maximum power consumption in W | 3 W 240 V AC, 2 W 24 V DC |
| Breaking capacity | 750 VA |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Short-circuit protection | 0.5 A fuse fast blow |
| Operating position | Any position without derating |
| Electrical connection | 1 conductor cable 0.0002…0.004 in² (0.14…2.5 mm²) - 26 AWG...14 AWG - solid - without cable end, 2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - 26 AWG...16 AWG - solid - without cable end, 1 conductor cable 0.0002…0.006 in² (0.14…4 mm²) - 26 AWG...12 AWG - flexible - with cable end, 2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - 26 AWG...16 AWG - flexible - with cable end |
| Tightening torque | 5.3 lbf.in (0.6 N.m) |
| Housing material | Polycarbonate |
| Status LED | 1 LED Green power ON, 2 LEDs Green relay ON, 2 LEDs Green function mode, 1 LED green and yellow radiofrequency reception signal |
| Mounting support | 35 mm symmetrical DIN rail |
| Number of Channels | 1 |
| Width | 1.4 in (36 mm) |
| Height | 4.3 in (108 mm) |
| Depth | 3.0 in (75 mm) |
| Net Weight | 0.29 lb(US) (0.13 kg) |
Environment 12
| Standards | IEC 61010, IEC 61010-1, IEC 61010-2-201, UL 61010, UL 61010-1, UL 61010-2-201, EN 61010-1, EN 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, IEC 60947-1, IEC 60068-2-6, IEC 60068-2-27, IEC 60529, IEC 60664-1, NF EN 61140, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 55032, EN 55011, ETSI EN 300 328, IEEE 802.15.4, FCC CFR 47 part 15 class B |
|---|---|
| Product Certifications | CE, UL, CB, UKCA, FCC, IC, CCC, Giteki |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Relative humidity | 5…90 % |
| Vibration resistance | +/- 7.5 mm (f= 5…8 Hz), 2 gn (f= 8…150 Hz) |
| Shock resistance | 10 gn 16 ms) 6000 shocks |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulation resistance | > 500 MOhm 500 V DC |
| [Ui] rated insulation voltage | 250 V |
| Mechanical durability | 1000000 cycles |
Show all 61 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ZBRRA |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480334702 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.13 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
