- Part number
- ZBRP1
Description
About the ZBRP1
About the ZBRP1

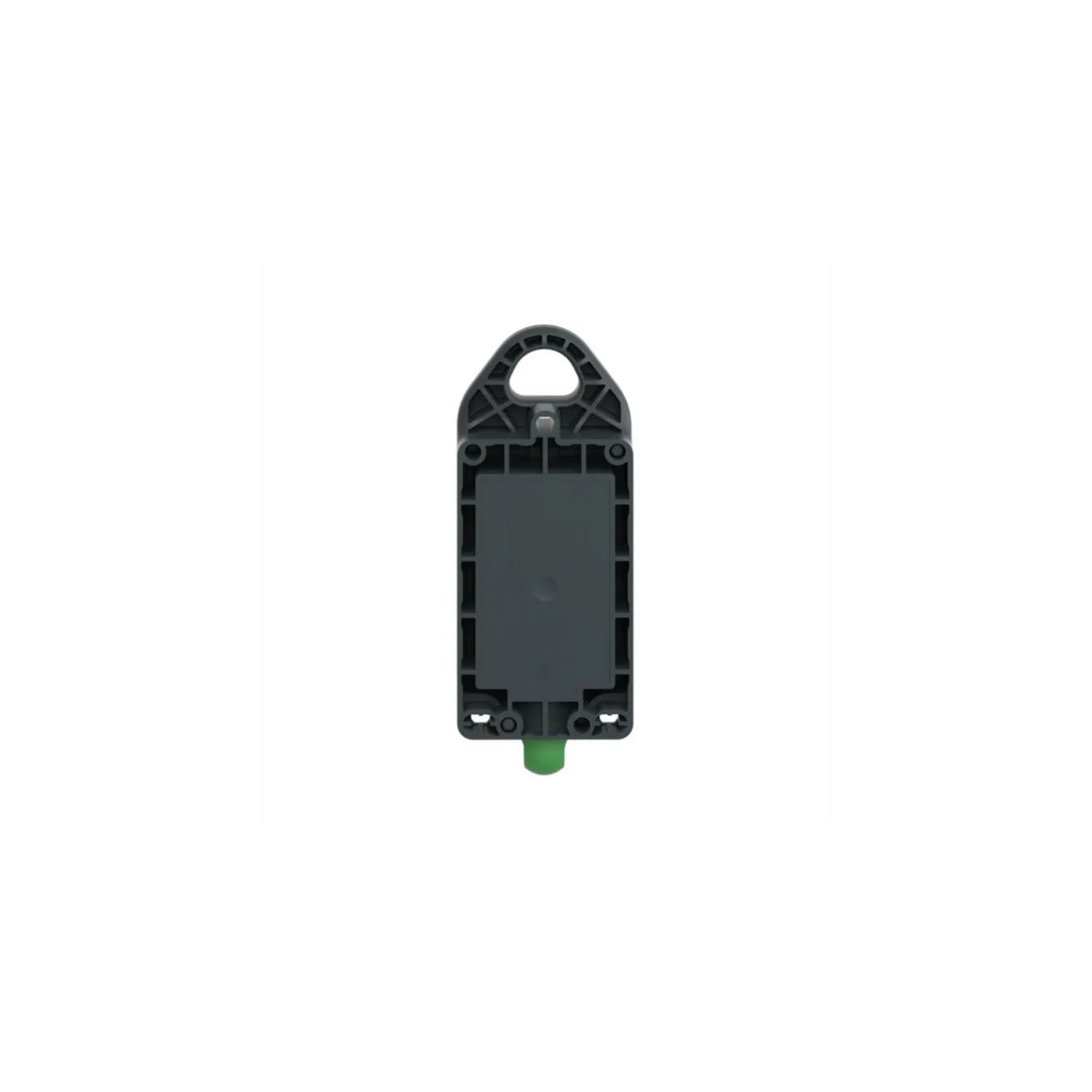

The Schneider Electric ZBRP1 is a rope pull switch with a built-in Harmony XB5R wireless and batteryless transmitter, triggered by a pull force of 45 to 1000 N on a conveyor-mounted rope. It sends a Zigbee Green Power radio frame to a receiver to stop or control equipment without running a signal cable.
Certifications & Standards
- UL
- GOST
- CE
- RCM
- ANATEL
- FCC
- UKCA
- UL 508
- EN/IEC 60947-1
- EN/IEC 60947-5-1
- EN/IEC 300328
Selection Notes
This device replaces a hard-wired emergency-pull-cord switch with a wireless one — useful on long conveyors or mobile machine sections where routing a control cable to the switch is costly. The 45-1000 N adjustable pull force lets it be tuned to the rope length and tension of the installation; pair it with a ZBRRA or ZBRRC receiver to act on the signal, and note it is not itself a safety-rated e-stop device.
Specification
Full specification
Main 7
| Range of Product | Harmony XB5R |
|---|---|
| Product or Component Type | Wireless and batteryless transmitter |
| Device short name | ZBRP1 |
| Bezel material | Plastic |
| Transmission frequency | 2405 MHz |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
Complementary 15
| Number of Channels | 1 |
|---|---|
| Antenna gain | 0 dBi |
| CAD overall height | 5.7 in (144 mm) |
| CAD overall width | 2.2 in (56 mm) |
| CAD overall depth | 1.5 in (38 mm) |
| Net Weight | 0.33 lb(US) (0.15 kg) |
| Mechanical robustness | Free fall resistance 1 m EN/IEC 60068-2-31 |
| Standards | UL 508, EN/IEC 60947-1, EN/IEC 62479, EN/IEC 60947-5-1, EN/IEC 300328 |
| Radio agreement | ICASA, GITEKI |
| Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum sensing distance | 328.08 ft (100 m) in free field |
| Emission Power | 3 mW |
| Fixing mode | By screw 15.9…19.5 lbf.in (1.8…2.2 N.m) |
| Mounting Mode | Between 2 ropes, Panel mount with universal support |
| Operating position | Any position |
Environment 9
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative humidity | 95 % without condensation |
| IP degree of protection | IP65 IEC 62262 |
| NEMA degree of protection | NEMA 4 |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)), Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), Susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz) |
| Product Certifications | UL, GOST, CE, RCM, ANATEL, FCC, UKCA |
Show all 44 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ZBRP1 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480571732 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.15 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ZBRP1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CE
- UKCA
- UL 508
- EN/IEC 60947-1
- EN/IEC 62479
- EN/IEC 60947-5-1
- EN/IEC 300328
Quick answers
Questions about the ZBRP1
What is the HS code of ZBRP1 for customs?
The tariff (HS) code on file for ZBRP1 is 853690.
What is the EAN of ZBRP1?
The EAN (GTIN) of ZBRP1 is 3606480571732.
Where does ZBRP1 ship from, and how fast?
ZBRP1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
