Part number
ZBRA1
$119.54 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5R

Schneider Electric ZBRA1 Harmony XB5R Relay Antenna 24...240 V AC/DC 5 m Cable Automation Component

Harmony XB5R relay antenna, 24...240 V AC/DC, 5 m cable, IP65.

Rated operational voltage
24–240–DC V DC
Communication
Zigbee Green Power 2.4 GHz (IEEE 802.15.4)
EAN
3606480334689
Description

About the ZBRA1

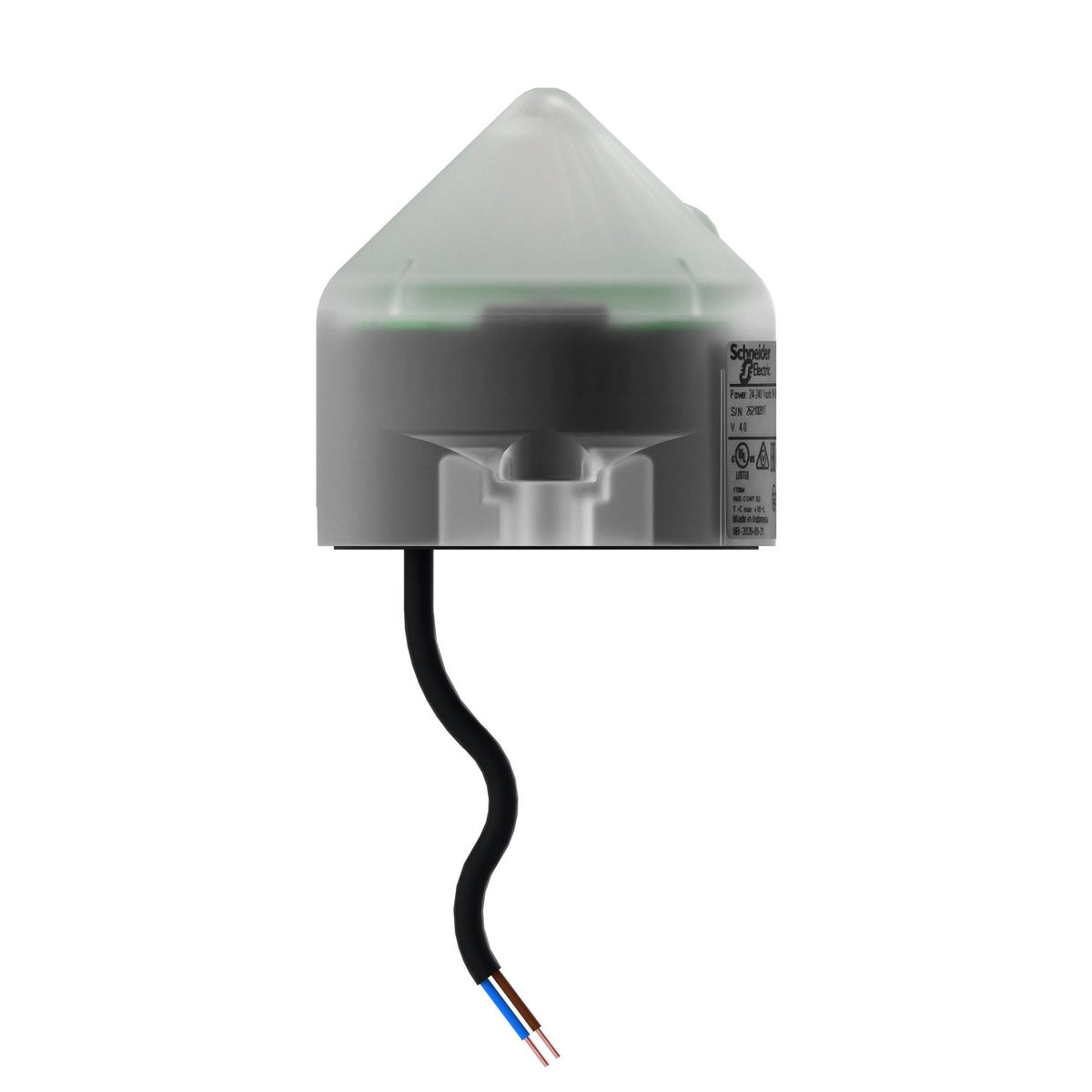

The Schneider Electric ZBRA1 is a relay antenna for the Harmony XB5R wireless and batteryless ecosystem, installed between a transmitter and a receiver to extend range or get round metal obstacles. It is powered at 24...240 V AC/DC, has a 5 m connection cable and is rated IP65.

Certifications & Standards

  • CE
  • UL
  • UKCA
  • FCC
  • IC
  • CCC
  • Giteki
  • IEC 61010-1
  • IEC 60947-1
  • ETSI EN 300 328
  • IEEE 802.15.4

Selection Notes

Add this relay antenna when a ZB5RTA or ZBRT transmitter is more than 100 m from its receiver, or when a metal enclosure blocks the direct radio path — it extends the usable range to roughly 300 m when placed between a transmitter in a plastic box and a receiver in a metal enclosure. Its wide 24...240 V AC/DC supply range means it does not need a dedicated low-voltage power source.

Specification

Full specification

50 values · Last verified 30 Oct 2026

Main 11

Range of Product Harmony XB5R
Product or Component Type Wireless and batteryless range, Antenna
Device short name ZBRA1
Product destination Wireless Schneider Electric ecosystem devices
Control station application Transceiver (emission and reception)
Colour of base of enclosure Black RAL 9011)
Colour of cover Transparent
Material Polycarbonate
frequency 2405 MHz transmitter, 2405 MHz receiver
Antenna type Omnidirectional
Antenna gain 0 dBi

Complementary 14

Maximum sensing distance 328.08 ft (100 m) in free field
Emission Power 3 mW
[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz +/- 10 %
Maximum power consumption in W 3 W AC/DC
Operating position Vertical
Status LED 1 LED Green power ON, 2 LEDs Green emission signal
Overvoltage category III
Rated short-duration power frequency withstand voltage 4 kV 50 Hz
Electrical connection 2 conductors cable 0.0005 in² (0.34 mm²) - flexible - 16.4 ft (5 m)
Tightening torque 5.3 lbf.in (0.6 N.m)
Housing material Polycarbonate
Short-circuit protection 0.06 A 24 V DC, 0.2 A 240 V AC
Number of Channels 1
Net Weight 0.4 lb(US) (0.2 kg)

Environment 12

Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Relative humidity 5…90 %
Electrical shock protection class Class II
IP degree of protection IP65
Pollution degree 3
IK degree of protection IK03
Standards IEC 61010, IEC 61010-1, IEC 61010-2-201, UL 61010, UL 61010-1, UL 61010-2-201, EN 61010-1, EN 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, IEC 60947-1, IEC 60068-2-6, IEC 60068-2-27, IEC 60529, IEC 60664-1, NF EN 61140, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 55032, EN 55011, ETSI EN 300 328, IEEE 802.15.4, FCC CFR 47 part 15 class B
Product Certifications CE, UL, CB, UKCA, FCC, IC, CCC, Giteki
Vibration resistance +/-0.5 mm (f= 10…55 Hz), 6 gn (f= 55…150 Hz)
Shock resistance 25 gn 6 ms) 6000 shocks, 15 gn 11 ms) half sine wave acceleration
Insulation resistance > 500 MOhm 500 V DC
[Ui] rated insulation voltage 250 V
Show all 50 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number ZBRA1
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480334689

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ZBRA1

No documents are on file for this part yet.
