- Part number
- ZBE1025
- Model no
- ZBE
Description
About the ZBE
About the ZBE

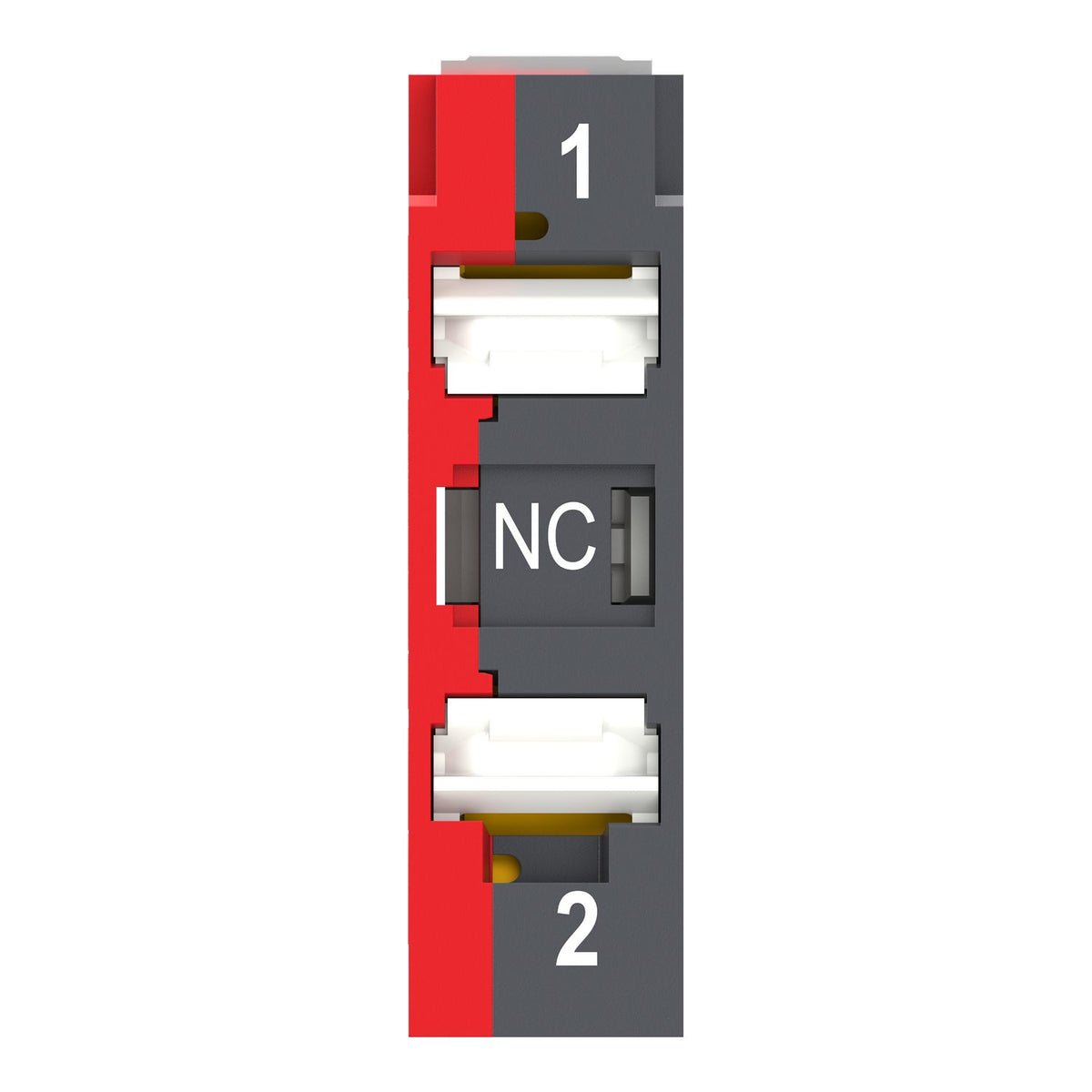

The Schneider Electric ZBE1025 is a Harmony XB4/XB5 add-on contact block with 1 NC and push-in terminals, mounting behind a 22 mm push-button or selector-switch body to add an extra switching contact. It is sold in packs of 5 and rated 10 A thermal current.
Certifications & Standards
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-4
- IEC 60947-5-5
- UL 1059
- UL 486E
- CSA C22.2 No 158
- CSA C22.2 No 65
- EAC
- CCC
Selection Notes
Push-in terminals cut wiring time versus screw clamps on high-volume panel assembly, at the cost of a lower 300 V insulation rating than the screw-clamp block. Choose the 1 NC version to match whether the added contact should close or open on actuation; it stacks onto the same XB4/XB5 body as other ZBE contact blocks for multi-contact stations.
Specification
Full specification
Main 9
| Range of Product | Harmony XB5, Harmony XB4 |
|---|---|
| Product or Component Type | Contact block |
| Device short name | ZBE |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 IEC 60529 |
| Contact operation | Slow-break |
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Connections - terminals | Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 |
Complementary 17
| CAD overall width | 1.4 in (34.3 mm) |
|---|---|
| CAD overall height | 0.6 in (14.8 mm) |
| CAD overall depth | 0.4 in (9.8 mm) |
| Net Weight | 0.011 lb(US) (0.005 kg) |
| Contacts type and composition | 1 NC |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.048 in (1.217 mm) NC changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 2.25 N NC changing electrical state |
| Mechanical durability | 10000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 300 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 |
| Mounting of block | Front mounting |
| Device presentation | Basic element |
Environment 7
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Standards | IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10 |
| Product Certifications | EAC, IECEE CB Scheme, CCC, UL, CSA |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZBE1025 |
|---|---|
| Type designation | ZBE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119037433 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.005 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ZBE1025
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CCC
- EAC
- CB Scheme
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-4
- IEC 60947-5-5
- UL 60947-1
- UL 60947-5-1
- UL 60947-5-5
- UL 1059
- UL 486E
- CSA C22.2 No 60947-1
- CSA C22.2 No 60947-5-1
- CSA C22.2 No 158
Quick answers
Questions about the ZBE
What is the HS code of ZBE for customs?
The tariff (HS) code on file for ZBE is 853890.
What is the EAN of ZBE?
The EAN (GTIN) of ZBE is 3389119037433.
Where does ZBE ship from, and how fast?
ZBE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Schneider Electric Harmony XB5 | Harmony XB4
- Brand
- Schneider Electric
- Series
- Harmony XB5 | Harmony XB4
