- Part number
- ZBE102
- Model no
- ZBE
Description
About the ZBE
About the ZBE

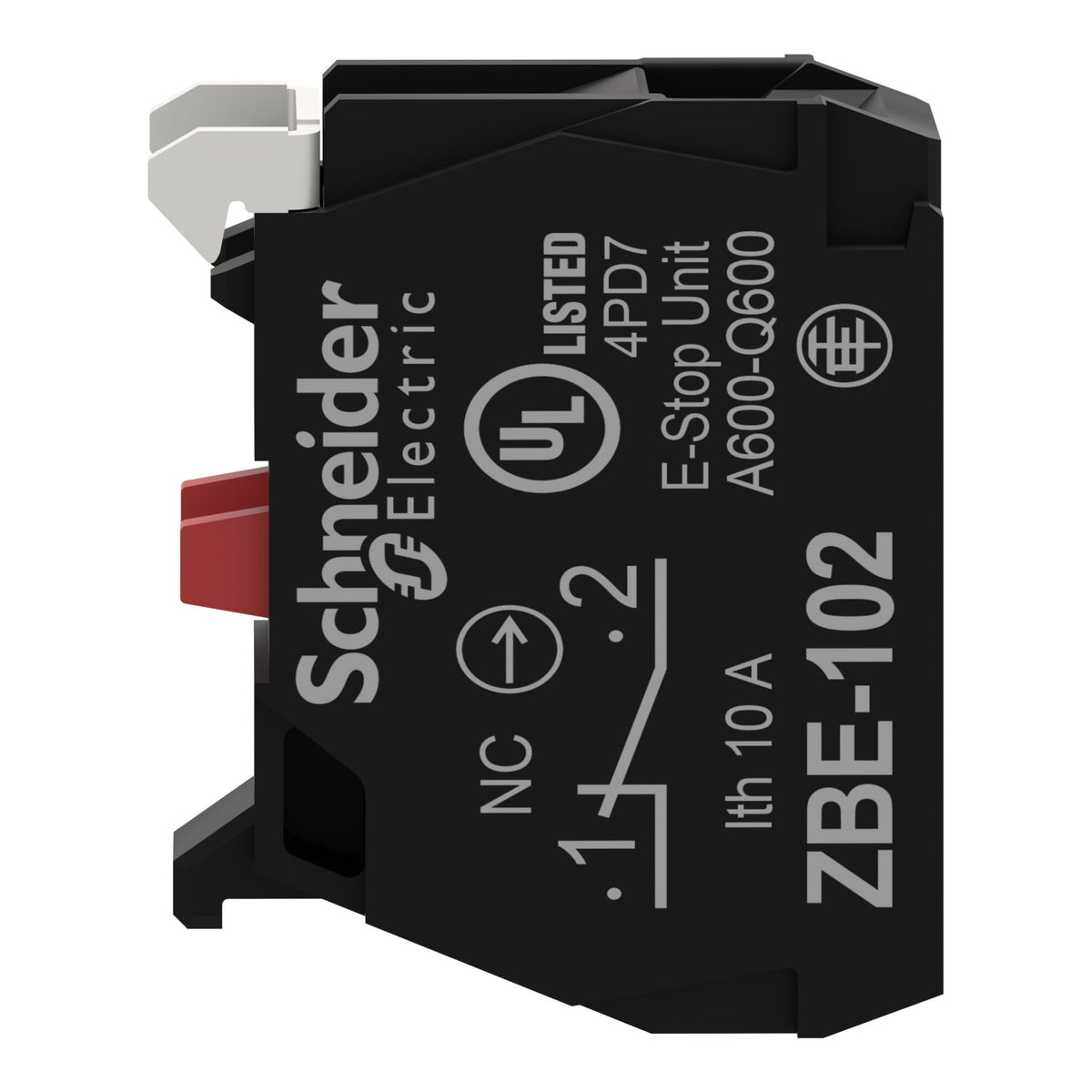

The Schneider Electric ZBE102 is a Harmony XB4/XB5 add-on contact block with 1 NC and screw clamp terminals, mounting behind a 22 mm push-button or selector-switch body to add an extra switching contact. It is sold in packs of 5 and rated 10 A thermal current.
Certifications & Standards
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-4
- UL 508
- CSA C22.2 No 14
- DNV
- BV
- LROS
- CCC
- GOST
Selection Notes
Screw-clamp terminals give the higher 600 V insulation rating and suit field rewiring or maintenance where push-in connectors are less practical. Choose the 1 NC version to match whether the added contact should close or open on actuation; it stacks onto the same XB4/XB5 body as other ZBE contact blocks for multi-contact stations.
Specification
Full specification
Main 9
| Range of Product | Harmony XB4, Harmony XB5 |
|---|---|
| Product or Component Type | Contact block |
| Device short name | ZBE |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 IEC 60529 |
| Contact operation | Slow-break |
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
Complementary 18
| Net Weight | 0.024 lb(US) (0.011 kg) |
|---|---|
| Contacts type and composition | 1 NC |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 2 N NC changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Mounting of block | Front mounting |
| Electrical composition code | C1 9), C2 7), C3 6), C4 4), C5 5), C6 3), C7 4), C8 2), C9 3), C12 6), M1 6), M2 4), M3 4), M5 2), M6 2), M7 6), M8 4), M9 2), SF1 3), SF2 2), MF1 2), MF2 2), C10 2), M4 2), C13 1) |
| Device presentation | Basic element |
Environment 7
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Standards | IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, JIS C8201-1 |
| Product Certifications | CSA, GOST, BV, DNV, LROS (Lloyds register of shipping), CCC, UL |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 48 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZBE102 |
|---|---|
| Type designation | ZBE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110089486 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.011 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
