Part number
ZBE1015
Model no
ZBE
$6.65 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5 | Harmony XB4

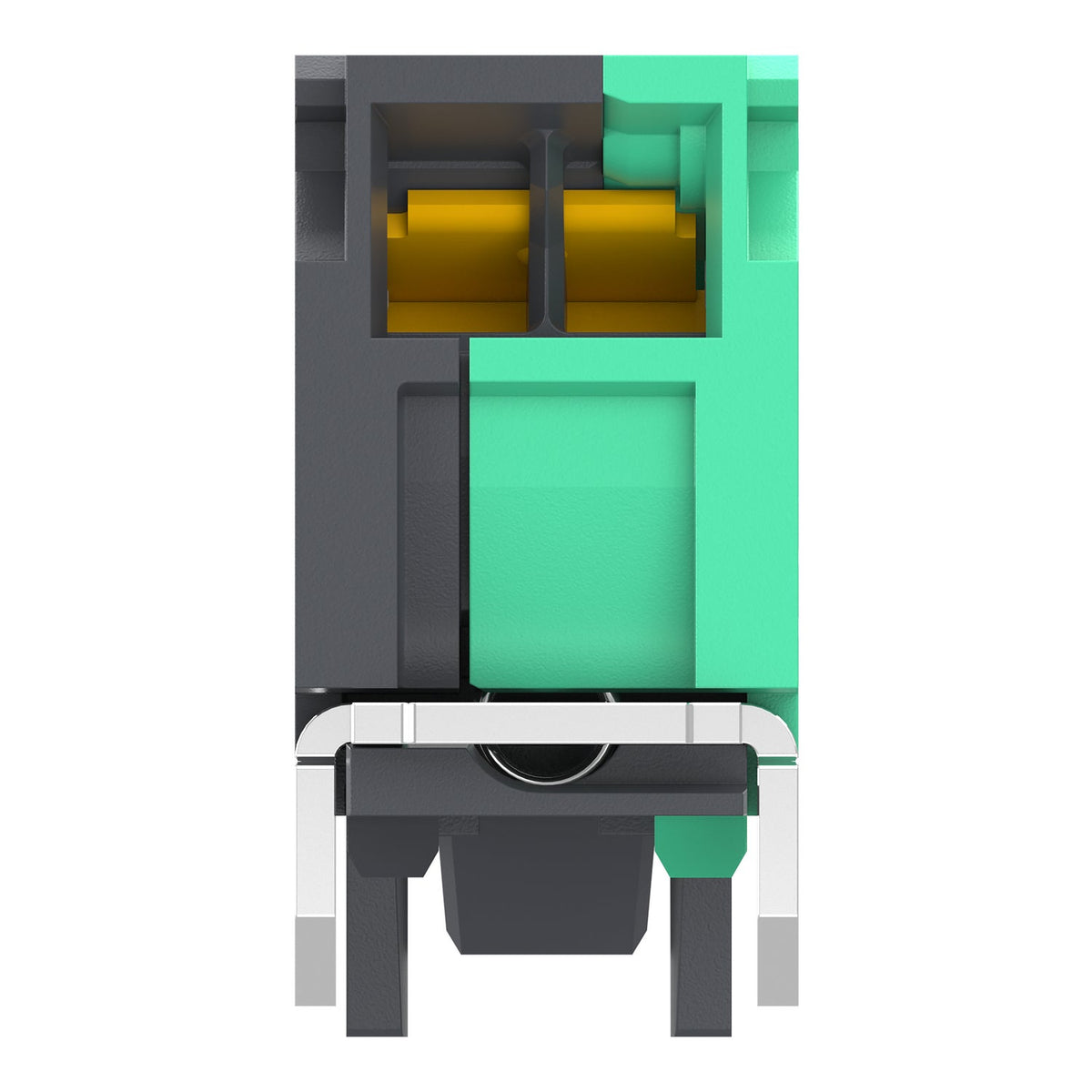

Schneider Electric ZBE1015 Harmony XB4 XB5 Contact Block 22 mm 1 NO Push-In Terminal Automation Component

Harmony XB4/XB5 add-on contact block, 1 NO, push-in terminal.

Range of Product
Harmony XB5, Harmony XB4
Product or Component Type
Contact block
Device short name
ZBE
Sale per indivisible quantity
5
IP degree of protection
IP20 IEC 60529
Contact operation
Slow-break
EAN
3389119037426
Description

About the ZBE

The Schneider Electric ZBE1015 is a Harmony XB4/XB5 add-on contact block with 1 NO and push-in terminals, mounting behind a 22 mm push-button or selector-switch body to add an extra switching contact. It is sold in packs of 5 and rated 10 A thermal current.

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 1059
  • UL 486E
  • CSA C22.2 No 158
  • CSA C22.2 No 65
  • EAC
  • CCC

Selection Notes

Push-in terminals cut wiring time versus screw clamps on high-volume panel assembly, at the cost of a lower 300 V insulation rating than the screw-clamp block. Choose the 1 NO version to match whether the added contact should close or open on actuation; it stacks onto the same XB4/XB5 body as other ZBE contact blocks for multi-contact stations.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 9

Range of Product Harmony XB5, Harmony XB4
Product or Component Type Contact block
Device short name ZBE
Sale per indivisible quantity 5
IP degree of protection IP20 IEC 60529
Contact operation Slow-break
Contact block type Single
Contacts usage Standard contacts
Connections - terminals Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1

Complementary 17

CAD overall width 1.4 in (34.3 mm)
CAD overall height 0.6 in (14.8 mm)
CAD overall depth 0.4 in (9.8 mm)
Net Weight 0.011 lb(US) (0.005 kg)
Contacts type and composition 1 NO
Positive opening Without
Operating travel 0.08 in (2.05 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 2.45 N NO changing electrical state
Mechanical durability 10000000 cycles
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 300 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
[Ie] rated operational current 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Mounting of block Front mounting
Device presentation Basic element

Environment 7

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Standards IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10
Product Certifications EAC, IECEE CB Scheme, CCC, UL, CSA
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ZBE1015
Type designation ZBE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119037426

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.005 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ZBE1015

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CCC
  • EAC
  • CB Scheme
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 60947-1
  • UL 60947-5-1
  • UL 60947-5-5
  • UL 1059
  • UL 486E
  • CSA C22.2 No 60947-1
  • CSA C22.2 No 60947-5-1
  • CSA C22.2 No 158
Quick answers

Questions about the ZBE

What is the HS code of ZBE for customs?

The tariff (HS) code on file for ZBE is 853890.

What is the EAN of ZBE?

The EAN (GTIN) of ZBE is 3389119037426.

Where does ZBE ship from, and how fast?

ZBE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
