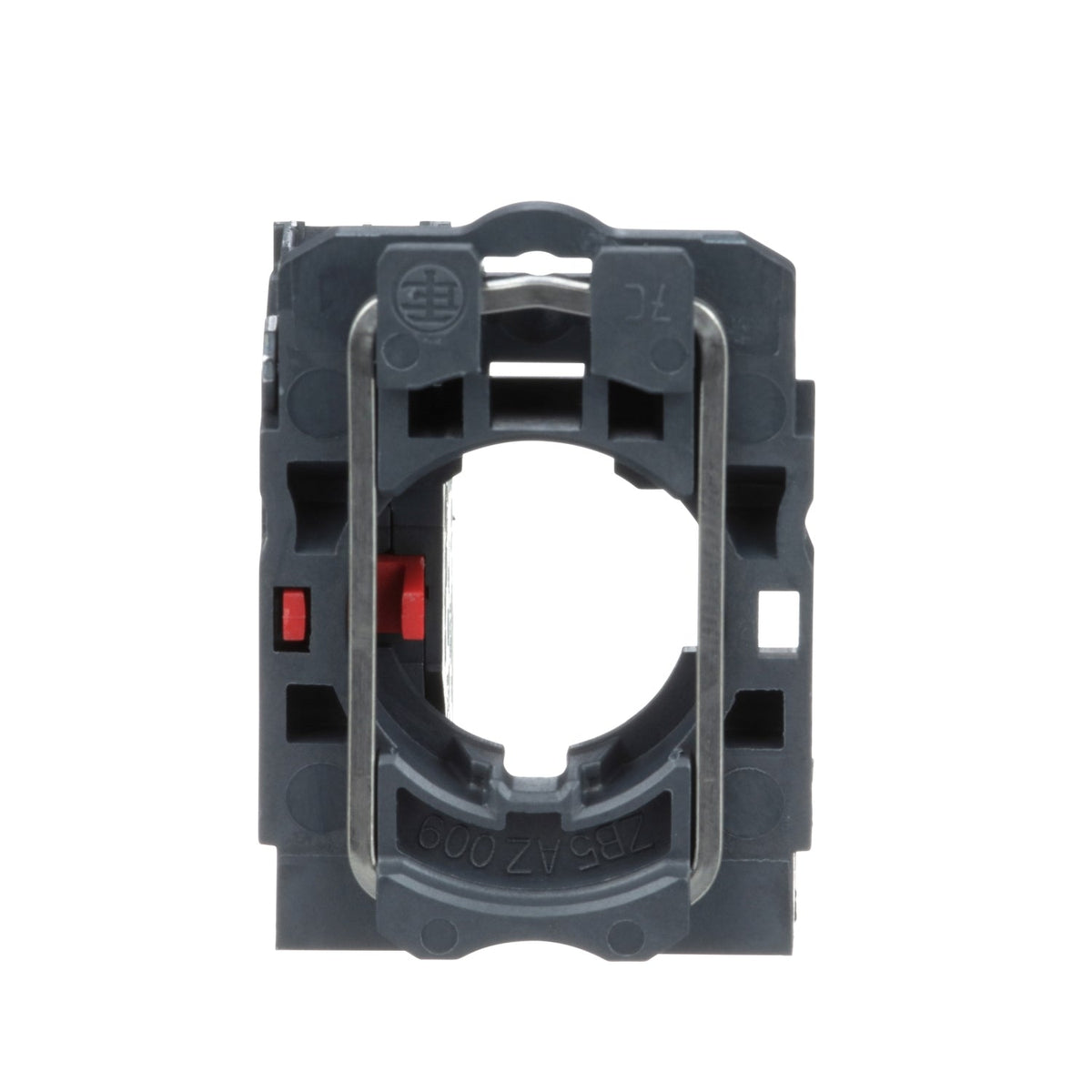

Schneider Electric ZB5AZ102 Harmony XB5 Body Contact Assembly with Fixing Collar 1 NC Screw Clamp Control Unit

% $-4.14
Schneider Electric ZB5AZ102 Harmony XB5 body contact assembly 1 NC
Schneider Electric ZB5AZ102 Harmony XB5 body contact assembly 1 NC

Schneider Electric ZB5AZ102 Harmony XB5 Body Contact Assembly with Fixing Collar 1 NC Screw Clamp Control Unit

Brand: Schneider Electric
Reference No: ZB5AZ102
Catalog No: ZB5AZ102
Series: Harmony XB5
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB5AZ102 is a Harmony XB5 complete body: a plastic fixing collar pre-assembled with a single 1 NC contact block, ready to accept any ZB5 head on top. It is the ready-to-mount base for a push button, selector switch or pilot light station on a 22 mm cut-out.

Technical Specifications

Reference ZB5AZ102
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110924411
Product or Component Type Complete body/contact assembly
Device short name ZB5
Fixing collar material Plastic
Contacts type and composition 1 NC
Contact operation Slow-break
Contact block type Single
Connections - terminals Screw clamp, <= 2 x 1.5 mm² with cable end / >= 1 x 0.22 mm² without cable end (IEC 60947-1)
[Ith] conventional free air thermal current 10 A (IEC 60947-5-1)
[Ie] rated operational current 3 A 240 V / 6 A 120 V, AC-15, A600 (IEC 60947-5-1)
[Ui] rated insulation voltage 600 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 6 kV (IEC 60947-1)
IP degree of protection IP20 (IEC 60529)
Overall dimensions (W x H x D) 30 x 42 x 32 mm
Net weight 0.021 kg
Device composition Fixing collar + Body
Ambient air temperature, operation -40...70 °C

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1
  • UL Listed

Selection Notes

This body already carries the 1 NC contact, so only a head (push-button, selector or pilot-light head) needs to be added to finish the station — no separate collar-plus-contact-block assembly step. Choose the normally closed version to match the control logic of the circuit it switches; it is not reversible once wired.

Technical Details

Short Description
Harmony XB5 body/contact assembly with fixing collar, 1 NC, screw clamp.
Mounting Type
22 mm panel mount, fixing collar
Protection Type
IP20
Catalog No
ZB5AZ102
Delivery Date (Days)
30 days
Model Number
ZB5
Tariff Code
853690
