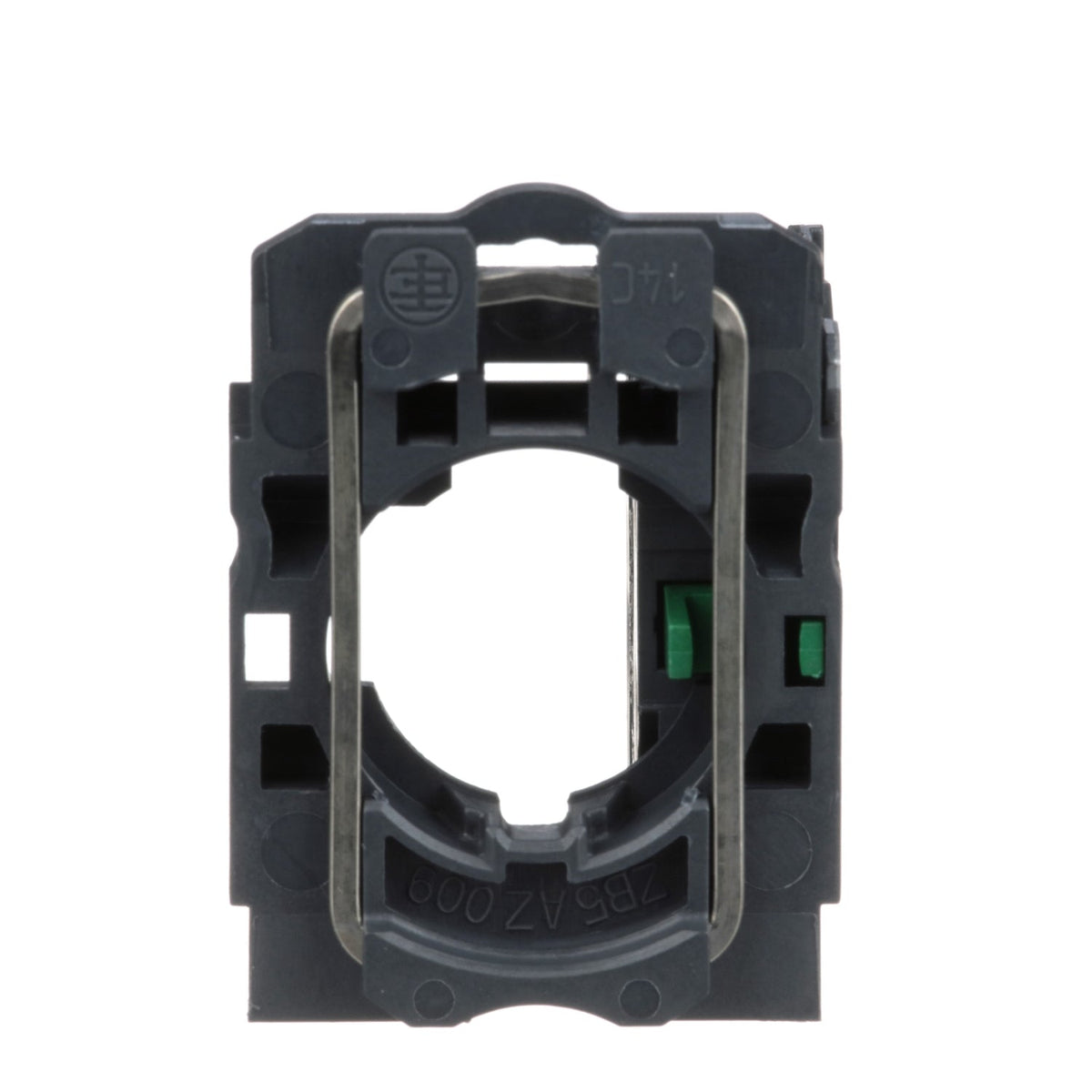

Schneider Electric ZB5AZ101 Harmony XB5 Body Contact Assembly with Fixing Collar 1 NO Screw Clamp Control Unit

Harmony XB5 body/contact assembly with fixing collar, 1 NO, screw clamp.

Range of Product
Harmony XB5
Product or Component Type
Complete body/contact assembly
Device short name
ZB5
Fixing collar material
Plastic
Sale per indivisible quantity
1
Head type
Standard
EAN
3389110924398
Description

About the ZB5

The Schneider Electric ZB5AZ101 is a Harmony XB5 complete body: a plastic fixing collar pre-assembled with a single 1 NO contact block, ready to accept any ZB5 head on top. It is the ready-to-mount base for a push button, selector switch or pilot light station on a 22 mm cut-out.

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1
  • UL Listed

Selection Notes

This body already carries the 1 NO contact, so only a head (push-button, selector or pilot-light head) needs to be added to finish the station — no separate collar-plus-contact-block assembly step. Choose the normally open version to match the control logic of the circuit it switches; it is not reversible once wired.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 10

Range of Product Harmony XB5
Product or Component Type Complete body/contact assembly
Device short name ZB5
Fixing collar material Plastic
Sale per indivisible quantity 1
Head type Standard
Contacts type and composition 1 NO
Contact operation Slow-break
Contact block type Single
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Complementary 22

CAD overall width 1.2 in (30 mm)
CAD overall height 1.7 in (42 mm)
CAD overall depth 1.3 in (32 mm)
Terminals description ISO n°1 (13-14)NO
Net Weight 0.046 lb(US) (0.021 kg)
Device Composition Fixing collar, Body
Contacts usage Standard contacts
Positive opening Without
Operating travel 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 2.3 N NO changing electrical state
Mechanical durability 10000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Device presentation Basic sub-assemblies

Environment 8

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
IP degree of protection IP20 IEC 60529
Standards UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, JIS C8201-1
Product Certifications BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 54 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
