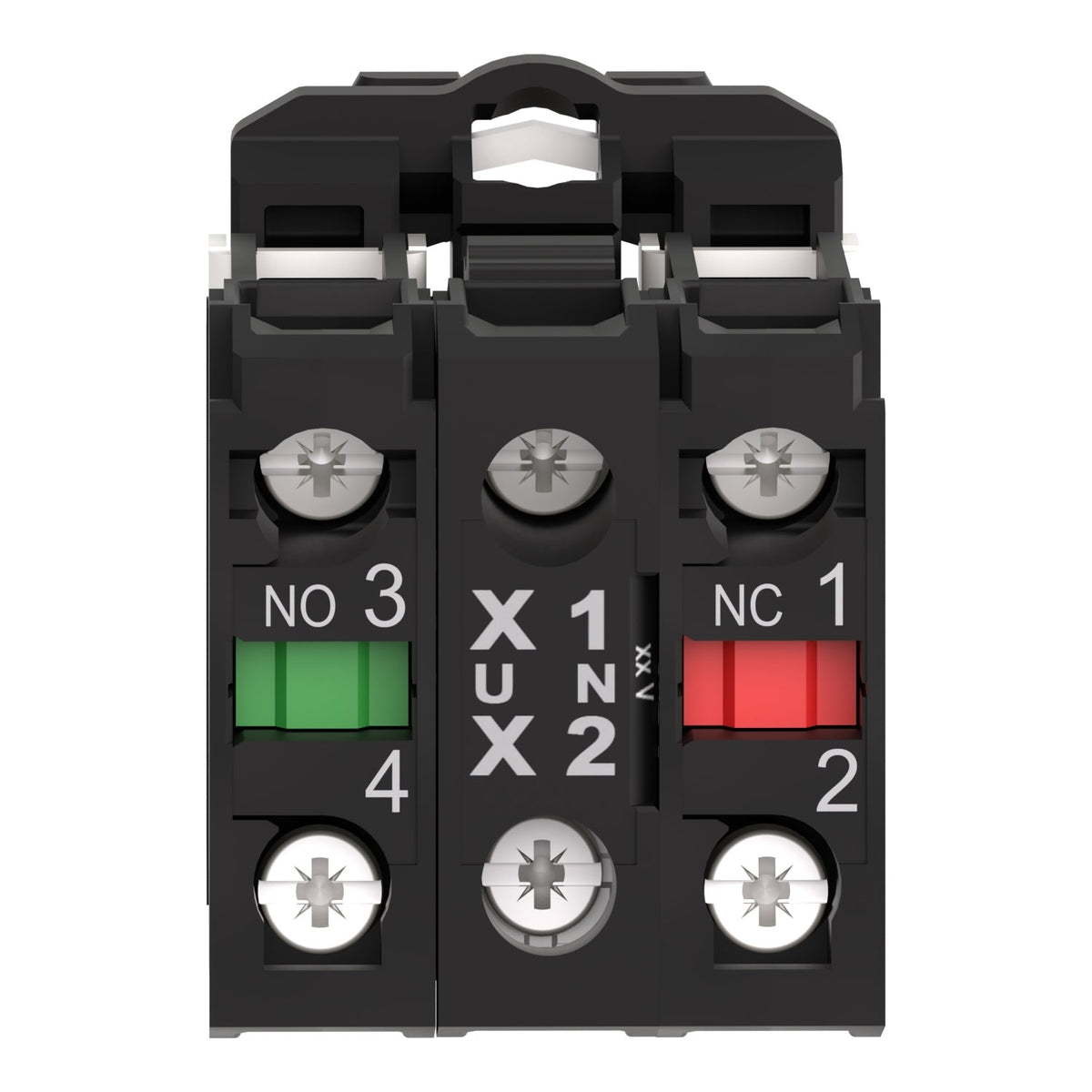

Schneider Electric ZB5AW0M15 Harmony XB5 Illuminated Body Contact Assembly 1NO+1NC 230...240 V AC Control Unit

Harmony XB5 body/contact assembly with light block, 1NO+1NC, 230...240 V AC, white LED.

Rated operational voltage
230–240 V AC
EAN
3389110909197
Description

About the ZB5

The Schneider Electric ZB5AW0M15 is a Harmony XB5 complete body: a fixing collar, a 1 NO + 1 NC contact assembly and an integral white-LED light block in one part, supplied at 230...240 V AC. It combines the switching function and the illumination of a selector or push-button station in a single body.

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1
  • UL Listed

Selection Notes

Because the light block and the contact block are built into one assembly, this SKU replaces a separate body plus light block when the station needs both an NO/NC output and a lit cap — fewer parts to stock and assemble than building the same function from a plain body and a bolt-on light block. Confirm the control circuit is 230...240 V AC before ordering: the 230 V version is not interchangeable with the sibling supplied at the other voltage.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Main 13

Range of Product Harmony XB5
Product or Component Type Complete body/contact assembly and light block
Device short name ZB5
Fixing collar material Plastic
Sale per indivisible quantity 1
Head type Standard
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Light source Universal LED
Bulb base Integral LED
Light block supply Direct
Light source colour White

Complementary 28

CAD overall width 1.2 in (30 mm)
CAD overall height 1.7 in (42 mm)
CAD overall depth 1.3 in (32 mm)
Terminals description ISO n°1 (11-12)NC, (13-14)NO
Net Weight 0.093 lb(US) (0.042 kg)
Contacts usage Standard
Positive opening With IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 2 N NC changing electrical state, 2.3 N NO changing electrical state
Operating torque 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability 5000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Signalling type Steady
[Us] rated supply voltage 230...240 V AC 50/60 Hz
Supply voltage limits 195…264 V AC
Current Consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5
Device presentation Basic sub-assemblies

Environment 12

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Electrical shock protection class Class II conforming to IEC 60536
Standards CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, UL 508, IEC 60947-1, JIS C8201-1
Product Certifications CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
Electromagnetic emission Class B IEC 55011
Show all 67 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ZB5AW0M15
Type designation ZB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110909197

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.042 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
