Schneider Electric ZB4BZ102 Harmony XB4 Contact Block Body Mounting Collar 1NC Screw Clamp Control Unit

% $-5.26
Schneider Electric ZB4BZ102 Harmony XB4 Contact Body - 1 NC
Schneider Electric ZB4BZ102 Harmony XB4 Contact Body - 1 NC

Schneider Electric ZB4BZ102 Harmony XB4 Contact Block Body Mounting Collar 1NC Screw Clamp Control Unit

Brand: Schneider Electric
Reference No: ZB4BZ102
Catalog No: ZB4BZ102
Series: Harmony XB4
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

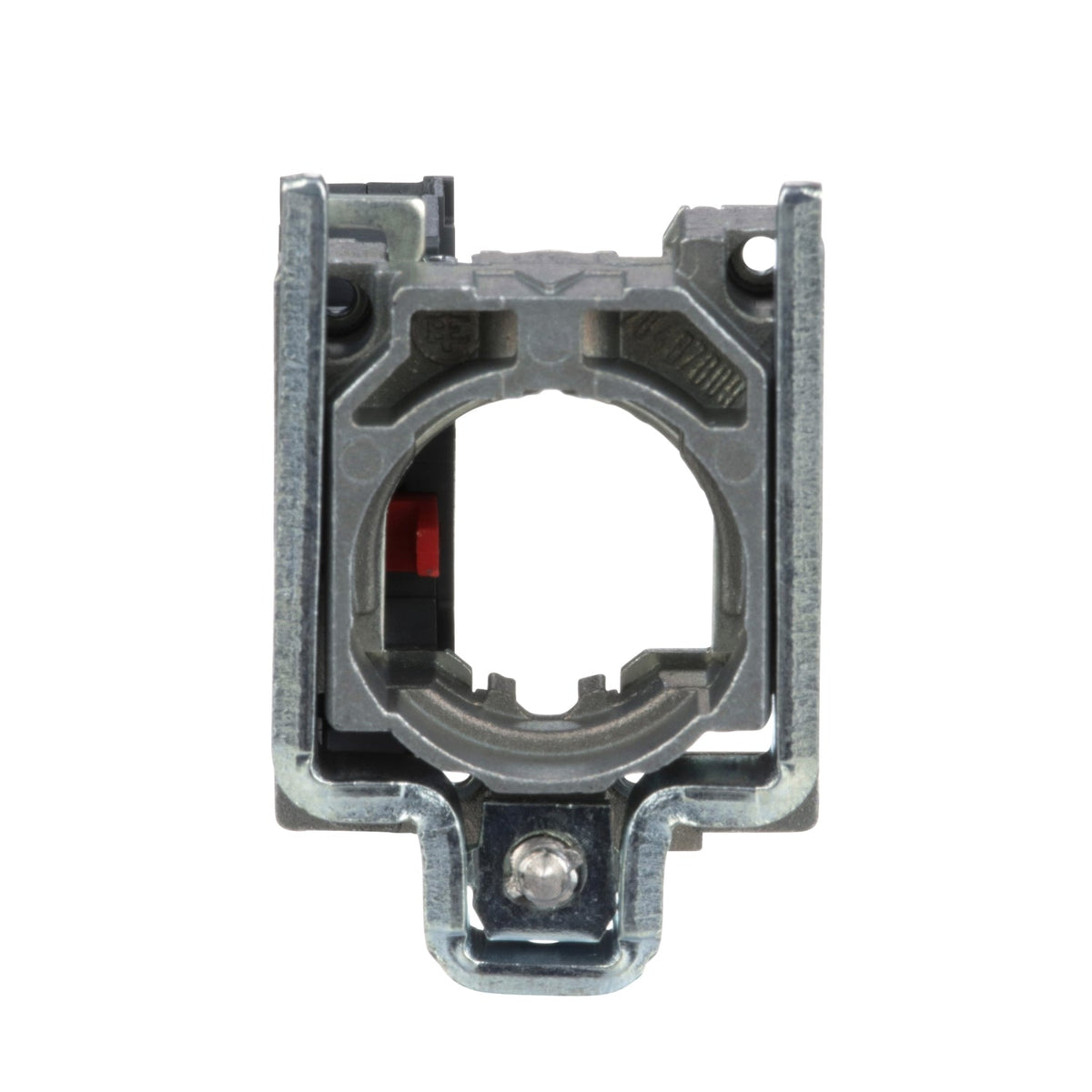

The Schneider Electric ZB4BZ102 is a Harmony XB4B complete body/contact assembly with a built-in metal fixing collar and a single 1 NC contact on screw-clamp terminals. It carries a 10 A conventional free-air thermal current and mounts behind a compatible XB4B operator head to form a complete pushbutton or selector switch station.

Technical Specifications

Reference ZB4BZ102
GTIN 3389110889383
Brand Schneider Electric
Range Harmony XB4
Product or Component Type Complete body/contact assembly
Device Short Name ZB4
Fixing Collar Material Zamak
Device Composition Fixing collar, body
Contacts Type and Composition 1 NC
Contact Operation Slow-break
Contact Block Type Single
Connections - Terminals Screw clamp, up to 2 x 1.5 mm2 with cable end (IEC 60947-1)
Positive Opening With (IEC 60947-5-1 appendix K)
Operating Force 2 N (NC changing state)
Contacts Material Silver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
[Ie] Rated Operational Current 3 A at 240 V AC-15; 6 A at 120 V AC-15; 1.2 A at 600 V AC-15; 0.1 A at 600 V DC-13; 0.27 A at 250 V DC-13; 0.55 A at 125 V DC-13
IP Degree of Protection IP20 (IEC 60529)
Net Weight 0.053 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14

Selection Notes

The positive-opening NC contact, certified to IEC 60947-5-1 Appendix K, gives a mechanically guaranteed break even if the contact welds shut, which is why it is the correct choice for a safety-related stop or guard-interlock circuit rather than the plain 1 NO sibling. The built-in metal fixing collar means this reference already includes the mounting hardware that a bare ZB4BZ009 collar would otherwise supply separately.

Technical Details

Short Description
Harmony XB4 body/contact assembly with mounting collar, 1 nc, screw clamp, 10 A Ith.
Mounting Type
22 mm panel cutout (behind XB4B head)
Protection Type
IP20
Catalog No
ZB4BZ102
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853690
