ZB4BW0M13
Model no
ZB4
$17.27 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB4

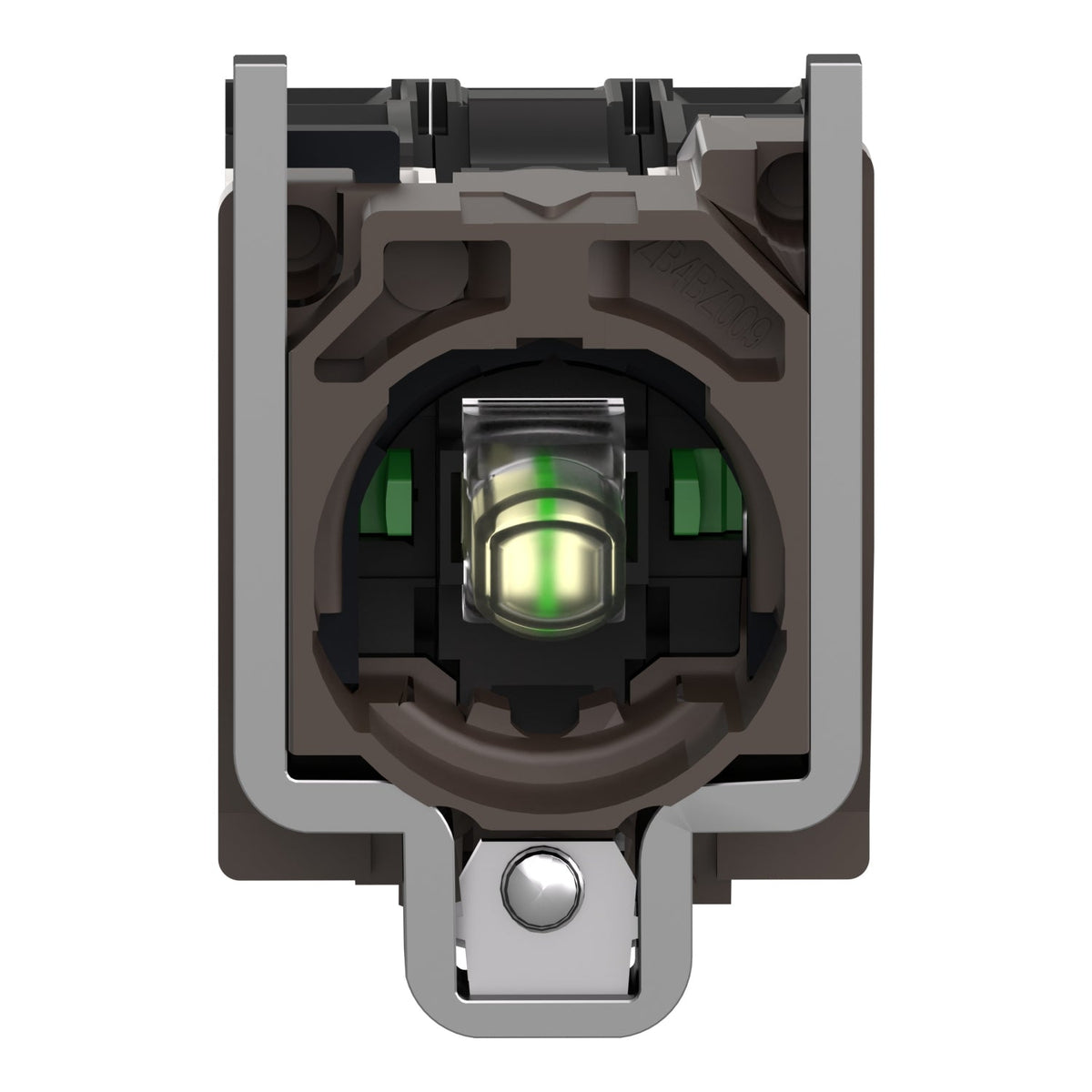

Schneider Electric ZB4BW0M13 Harmony XB4 Body Contact Assembly Light Block LED 230-240V AC 2NO Control Unit

Harmony XB4 body/contact assembly with white LED light block, 230...240 V AC 50/60 Hz, 2 NO, screw clamp.

Rated operational voltage
230–240 V AC
EAN
3389110893526
Description

About the ZB4

The Schneider Electric ZB4BW0M13 is a Harmony XB4B complete body/contact assembly combined with a white universal-LED light block, supplied for 230...240 V AC 50/60 and fitted with 2 NO contacts on screw-clamp terminals. It mounts behind a compatible XB4B illuminated head to form a complete illuminated pushbutton or selector switch.

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14

Selection Notes

At 230...240 V AC, this assembly connects the illuminated contact body directly to a standard single-phase mains feed without a separate control transformer, which simplifies wiring on panels where 24 V control power is not already distributed. Pick the 24 V AC/DC ZB4BW0B13 sibling instead when the panel runs its pilot-device circuit from a low-voltage control transformer.

Specification

Full specification

65 values · Last verified 30 Oct 2026

Main 14

Range of Product Harmony XB4
Product or Component Type Complete body/contact assembly and light block
Device short name ZB4
Fixing collar material Zamak
Sale per indivisible quantity 1
Head type Standard
Contacts type and composition 2 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Light source Universal LED
Bulb base Integral LED
Light block supply Direct
Light source colour White
[Us] rated supply voltage 230...240 V AC 50/60 Hz

Complementary 25

CAD overall width 1.2 in (30 mm)
CAD overall height 1.9 in (47 mm)
Terminals description ISO n°1 (13-14)NO
Net Weight 0.163 lb(US) (0.074 kg)
Contacts usage Standard
Positive opening Without
Operating travel 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 2.3 N NO changing electrical state
Operating torque 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability 5000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Signalling type Steady
Supply voltage limits 195…264 V AC
Current Consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5

Environment 12

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Electrical shock protection class Class I conforming to IEC 60536
Standards CSA C22.2 No 14, IEC 60947-5-5, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Product Certifications DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
Electromagnetic emission Class B IEC 55011
Show all 65 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ZB4BW0M13
Type designation ZB4
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110893526

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.074 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
