- Part number
- ZB4BV6
- Model no
- ZB4
Description
About the ZB4
About the ZB4

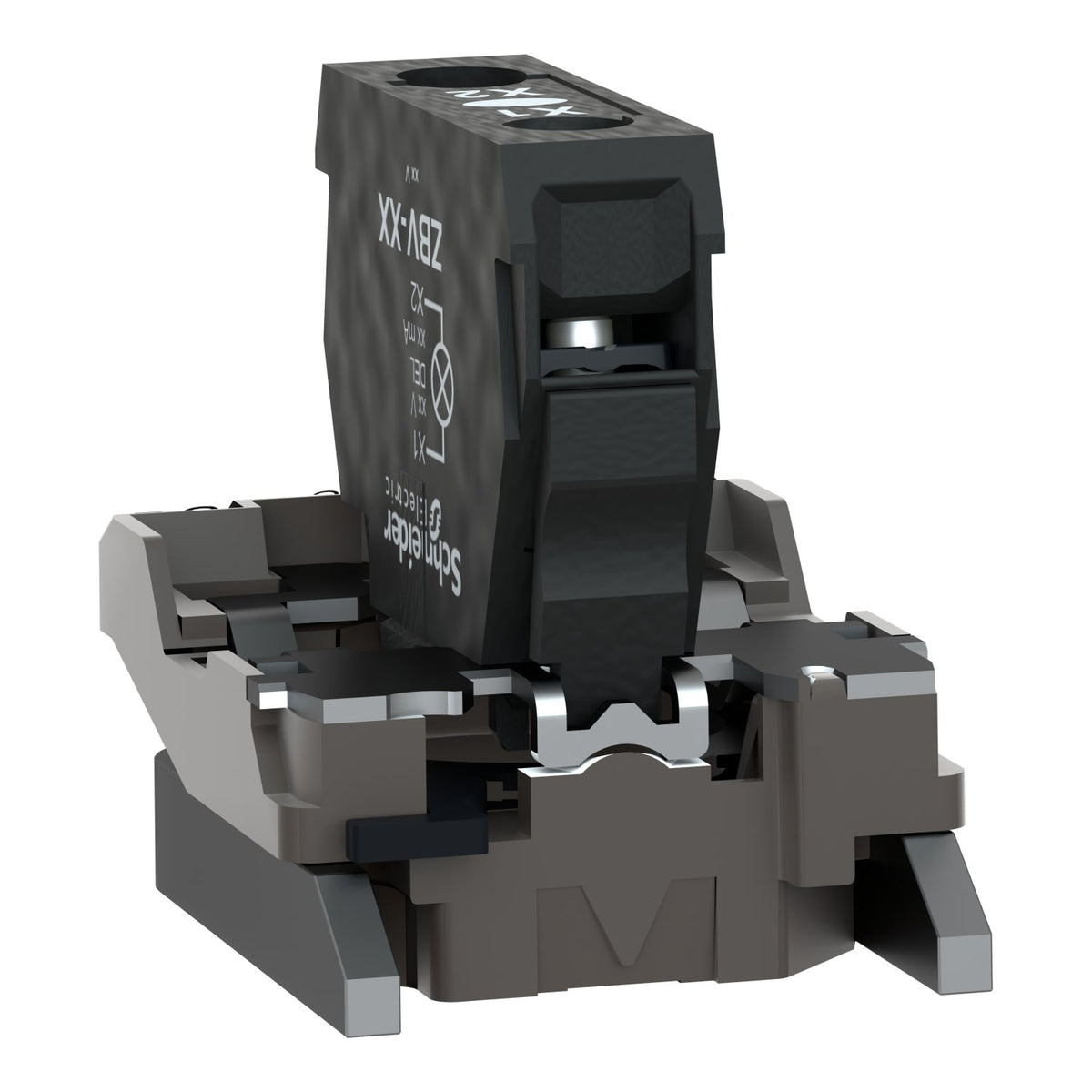

The Schneider Electric ZB4BV6 is a Harmony XB4B light block with a built-in Zamak metal fixing collar, taking a BA9s bulb (not included) rated up to 250 V. It mounts behind a compatible XB4B pilot-light or illuminated selector-switch head to complete an indicator or illuminated control.
Certifications & Standards
- DNV
- UL Listed
- LROS
- BV
- CSA
- IEC 60947-5-5
- IEC 60947-5-4
- IEC 60947-1
- IEC 60947-5-1
- UL 508
- CSA C22.2 No 14
- JIS C8201-5-1
- JIS C8201-1
Selection Notes
Because it drives a direct-supply BA9s bulb rather than an integral LED module, the ZB4BV6 is the choice when an existing stock of incandescent BA9s lamps needs to be reused or when a simple, driver-free light path is preferred over the regulated supply an LED block needs; swap to a ZB4BW-series LED body/light block assembly where lamp life and lower power draw matter more than bulb interchangeability. The built-in Zamak collar means this reference already carries the mounting hardware a bare ZB4BZ009 collar would otherwise supply separately.
Specification
Full specification
Main 10
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 |
| Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end, Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
Complementary 11
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.5 in (37 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.115 lb(US) (0.052 kg) |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Basic sub-assemblies |
Environment 8
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| Standards | IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1 |
| Product Certifications | DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 43 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB4BV6 |
|---|---|
| Type designation | ZB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110889628 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.052 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
