- Part number
- ZB2BE102
Description
About the ZB2BE102
About the ZB2BE102

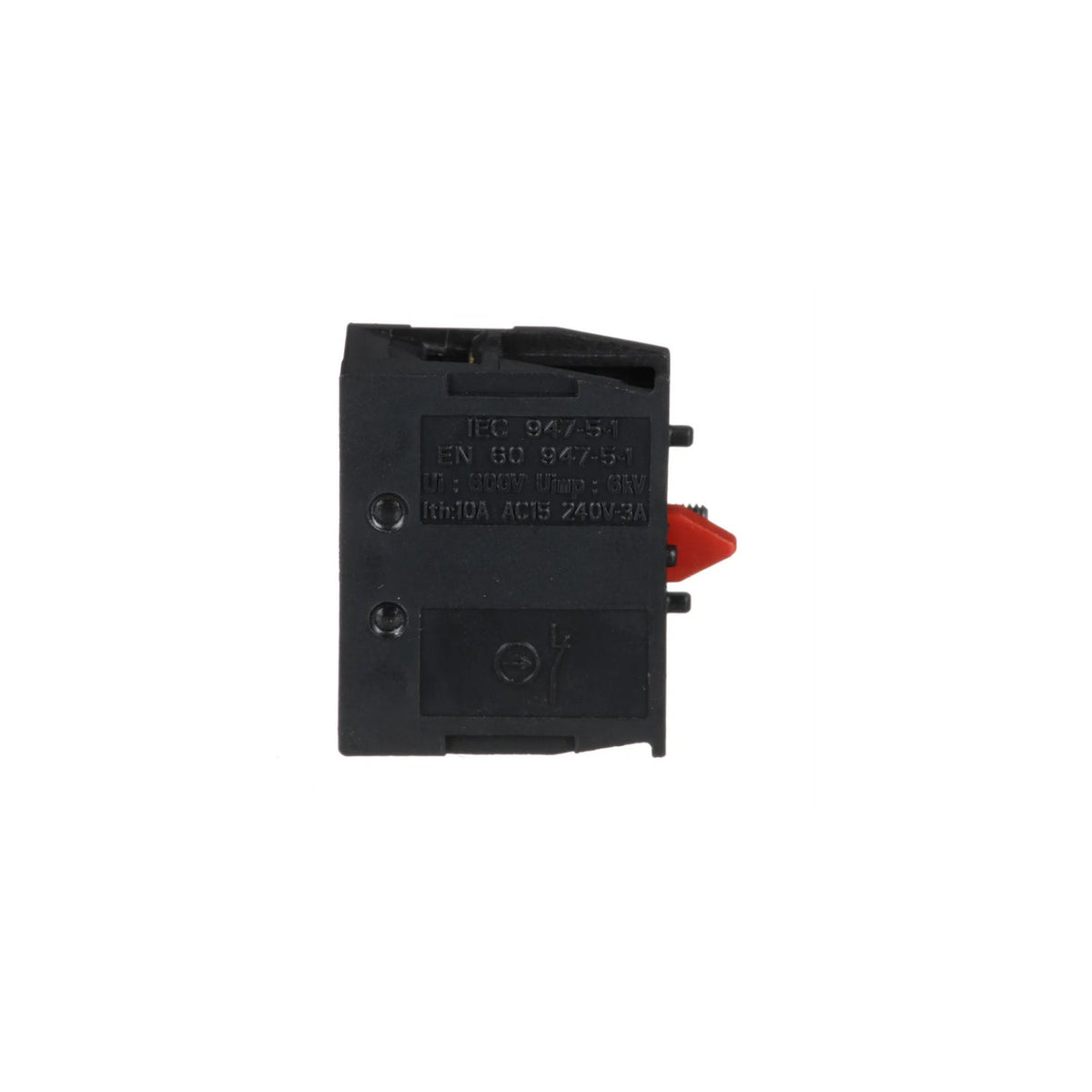

The Schneider Electric ZB2BE102 is an add-on contact block for the Harmony 22 mm modular range, carrying one 1 NC contact for front mounting on XB4, XB5 or XACA push-button and selector-switch bodies. It connects with screw-clamp terminals and extends a push button head with one more switched circuit for interlocking or signalling.
Certifications & Standards
- IEC 60947-5-1
- UL 508
- IEC 60204-32
- CSA C22.2 No 14
Selection Notes
The ZB2BE102 mounts across the whole XB4/XB5/XACA family, so one spares line covers metal and plastic 22 mm heads alike. Choose the 1 NC version for break-on-press control functions (stop, interlock release); stack it with the ZB2BE101 block on a double-mounting head when both a make and a break contact are needed from one operator.
Specification
Full specification
Main 11
| Range of Product | Harmony XAC |
|---|---|
| Product or Component Type | Contact block |
| Component name | ZB2 |
| Electrical circuit type | Control circuit |
| Contact block application | Single speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product Compatibility | XACA, XB4, XB5 |
| Contacts type and composition | 1 NC |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
Complementary 12
| Mechanical durability | 1000000 cycles |
|---|---|
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 13…15 N |
| Short-circuit protection | 10 A fuse protection cartridge gG (gl) |
| Rated operational power in W | 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1, 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1, 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1 |
| Terminals description ISO n°1 | (11-12)NC |
| Net Weight | 0.04 lb(US) (0.02 kg) |
| Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end, Screw clamps terminals, 2 x 1.5 mm² with or without cable end |
Environment 5
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | IEC 60204-32, IEC 60947-5-1, CSA C22.2 No 14, UL 508 |
Show all 41 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ZB2BE102 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110612615 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
