Part number
ZA2EE102
Model no
ZA2
$1.52 On request Dispatch — · From TürkiyeGet a Quote
Harmony XA2

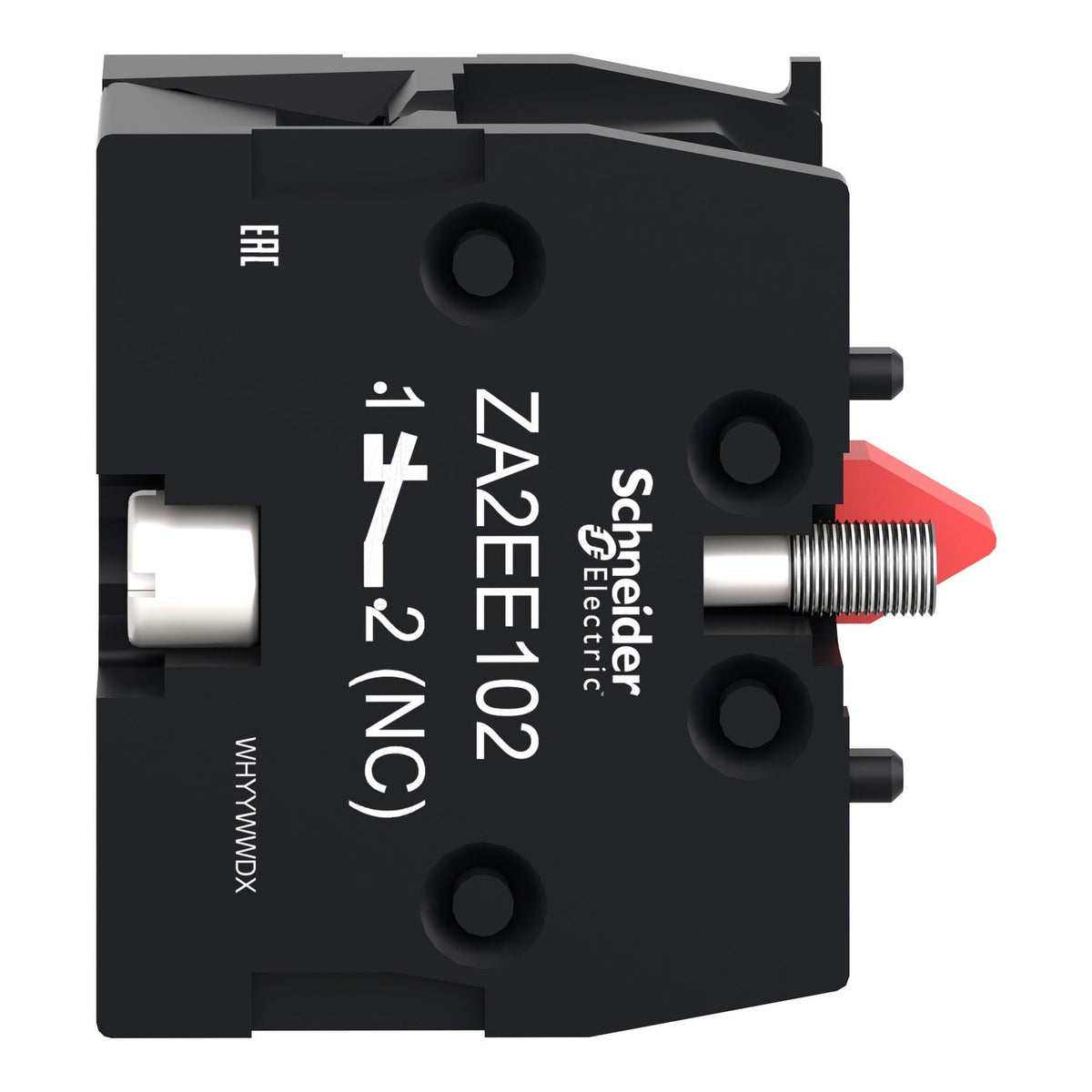

Schneider Electric ZA2EE102 Easy Harmony XA2 Contact Block Single 1NC Faston Terminal Automation Component

Schneider Electric Easy Harmony XA2 single contact block, 1 NC, faston terminal.

Range of product
Harmony XA2
Product or component type
Contact block
Device short name
ZA2
Component name
ZA2E
Description

About the ZA2

The Schneider Electric ZA2EE102 is a single contact block for the Easy Harmony XA2 range of 22 mm plastic pushbuttons and selector switches, carrying one 1 NC silver-alloy contact rated 1.5 million operating cycles. It snaps onto a compatible XA2 head and connects with faston (6.3 mm) or screw-clamp terminals, making it quick to swap out on a crowded panel.

Certifications & Standards

  • CE
  • CCC
  • IEC 60947-1
  • IEC 60947-5-4
  • IEC 60529
  • IEC 60947-5-1

Selection Notes

The ZA2EE102's 1 NC contact and IP20 rating mark it as a panel-interior control-circuit block, not a load-switching device — keep it behind a closed enclosure. Choose this break-on-operate contact for stop/interlock functions that should open a circuit when the button is pressed; use the ZA2EE101 variant where the opposite logic is needed.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 4

Range of product Harmony XA2
Product or component type Contact block
Device short name ZA2
Component name ZA2E

Complementary 15

Contact operation Slow-break
Contact block type Single
Contacts usage Standard contacts
Positive opening Without
Mechanical durability 1500000 cycles
Connections - terminals , <= 2 x 1.5 mm² conforming to IEC 60947-1, , <= 1 x 2.5 mm² conforming to IEC 60947-1, , >= 1 x 0.5 mm² conforming to IEC 60947-1, Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1
Tightening torque 0.8 N.m
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A fuse type gL conforming to IEC 60269-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1, 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1
Electrical durability 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Contacts type and composition 1 NC

Environment 6

Protective treatment TC
IP degree of protection IP20 conforming to IEC 60529
Standards IEC 60947-1, IEC 60529, IEC 60947-5-4, IEC 60947-5-1
Product certifications CCC, CE
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…55 °C
Show all 55 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number ZA2EE102
Type designation ZA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.520 cm
Package 1 Width 10.160 cm
Package 1 Length 10.160 cm
Package 1 Weight 20.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 5.200 cm
Package 2 Width 19.100 cm
Package 2 Length 17.000 cm
Package 2 Weight 100.000 g
Unit Type of Package 3 S02
Number of Units in Package 3 200
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 4.000 kg
Shipping weight 0.02 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ZA2EE102 3

Certifications

Certifications and standards

  • CE
  • CCC
  • IEC 60947-1
  • IEC 60529
  • IEC 60947-5-4
  • IEC 60947-5-1
Quick answers

Questions about the ZA2

What is the HS code of ZA2 for customs?

The tariff (HS) code on file for ZA2 is 853890.

Where does ZA2 ship from, and how fast?

ZA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
