Harmony XA2Schneider Electric ZA2EE101 Easy Harmony XA2 Contact Block Single 1NO Faston Terminal Automation Component
Schneider Electric Easy Harmony XA2 single contact block, 1 NO, faston terminal.
Description
About the ZA2
About the ZA2

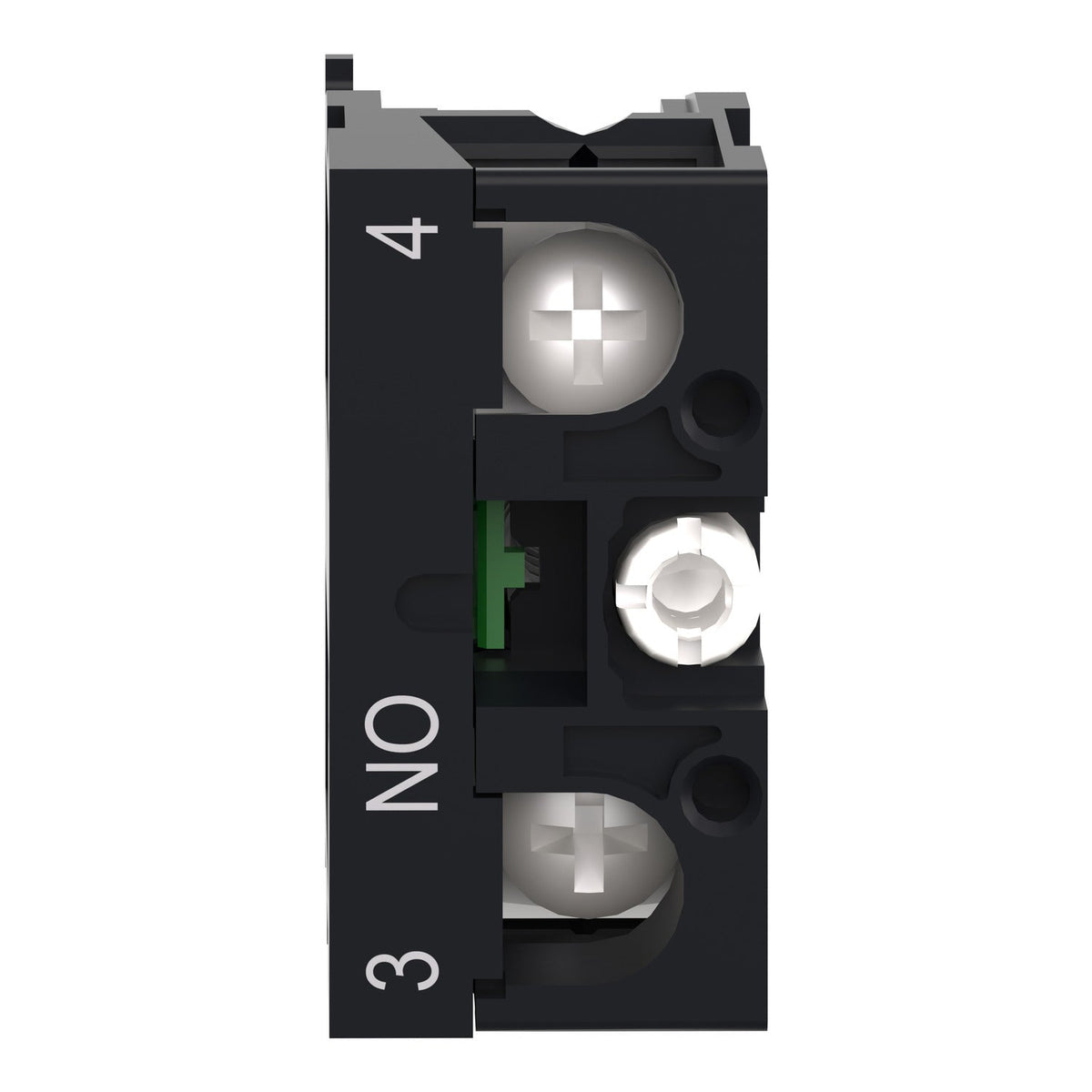

The Schneider Electric ZA2EE101 is a single contact block for the Easy Harmony XA2 range of 22 mm plastic pushbuttons and selector switches, carrying one 1 NO silver-alloy contact rated 1.5 million operating cycles. It snaps onto a compatible XA2 head and connects with faston (6.3 mm) or screw-clamp terminals, making it quick to swap out on a crowded panel.
Certifications & Standards
- CE
- CCC
- IEC 60947-1
- IEC 60947-5-4
- IEC 60529
- IEC 60947-5-1
Selection Notes
The ZA2EE101's 1 NO contact and IP20 rating mark it as a panel-interior control-circuit block, not a load-switching device — keep it behind a closed enclosure. Choose this make-on-operate contact for start/confirm functions that should close a circuit when the button is pressed; use the ZA2EE102 variant where the opposite logic is needed.
Specification
Full specification
Main 4
| Range of product | Harmony XA2 |
|---|---|
| Product or component type | Contact block |
| Device short name | ZA2 |
| Component name | ZA2E |
Complementary 15
| Contact operation | Slow-break |
|---|---|
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | , <= 2 x 1.5 mm² conforming to IEC 60947-1, , <= 1 x 2.5 mm² conforming to IEC 60947-1, , >= 1 x 0.5 mm² conforming to IEC 60947-1, Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
| Tightening torque | 0.8 N.m |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1, 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Contacts type and composition | 1 NO |
Environment 6
| Protective treatment | TC |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 60947-1, IEC 60947-5-4, IEC 60529, IEC 60947-5-1 |
| Product certifications | CE, CCC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
Show all 55 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | ZA2EE101 |
|---|---|
| Type designation | ZA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 2.900 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 15.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.260 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 3200 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 60.160 kg |
| Shipping weight | 0.015 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
