Schneider Electric XVZ02 Fixing Plate with Pole Grey Harmony XV4 XV6 XVB7 Automation Component
Schneider Electric XVZ02 – plastic fixing plate with pole, grey, for Harmony XV4/XV6/XVB7.
Description
About the XVZ02
About the XVZ02

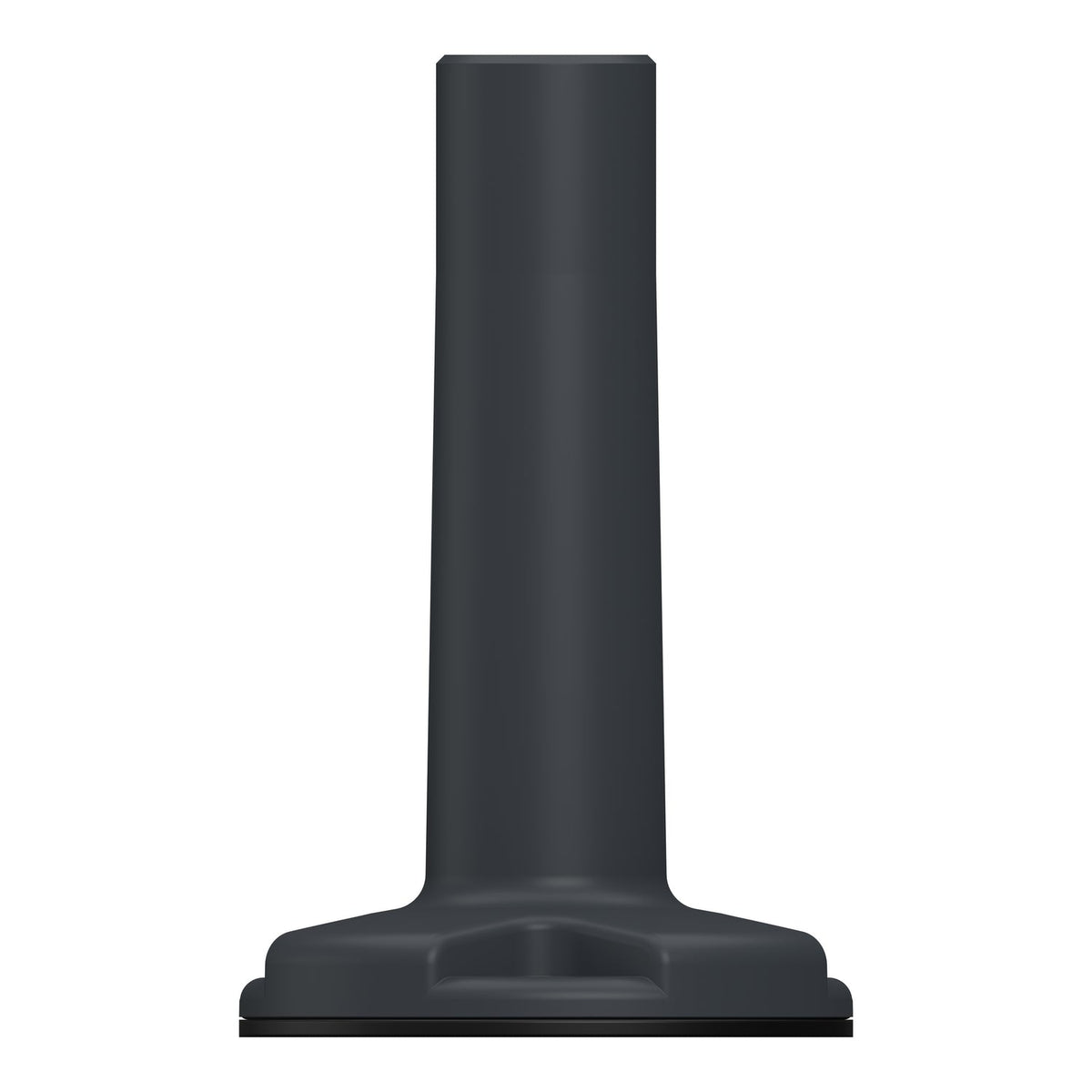

The Schneider Electric XVZ02 is a plastic fixing plate with pole in grey, a universal mounting accessory for the Harmony XV4, XV6 and XVB7 modular tower light ranges rather than a signaling device on its own. It has bottom cable entry and an IP66 degree of protection, and is designed for customer assembly alongside the rest of the modular tower light hardware.
Compatibility
The XVZ02 includes a 100 mm, 25 mm-diameter aluminium pole built onto the fixing plate, and is the base part the XVZ09 wall bracket or the XVZ07/XVZ08 side-entry and magnetic adapters are designed to attach to. Its IP66 rating is higher than the bottom-entry XVZ01 plate, which stops at IP65, reflecting the extra sealing needed around the integrated pole joint.
Specification
Full specification
Main 6
| Product or Component Type | Accessory |
|---|---|
| Accessory / Separate Part Type | Plastic fixing plate with pole |
| Product Compatibility | XVB7....., XV6....., XV4..... |
| Material | Plastic |
| Provided accessory | Gasket |
| Net Weight | 0.179 lb(US) (0.081 kg) |
Complementary 3
| Height | 4.4 in (112 mm) |
|---|---|
| cable entry | Bottom entry |
| Color | Dark grey |
Environment 2
| IP degree of protection | IP66 |
|---|---|
| Environmental Type ratings | UL type 4X/13 |
Show all 24 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVZ02 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606487130437 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 0.081 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVZ02
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the XVZ02
What is the HS code of XVZ02 for customs?
The tariff (HS) code on file for XVZ02 is 853890.
What is the EAN of XVZ02?
The EAN (GTIN) of XVZ02 is 3606487130437.
Where does XVZ02 ship from, and how fast?
XVZ02 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
