- Part number
- XVUZ400
- UL
- CSA
- CE
Harmony XVUSchneider Electric XVUZ400 Harmony XVU Fixing Plate, 400 mm Pole Black Automation Component

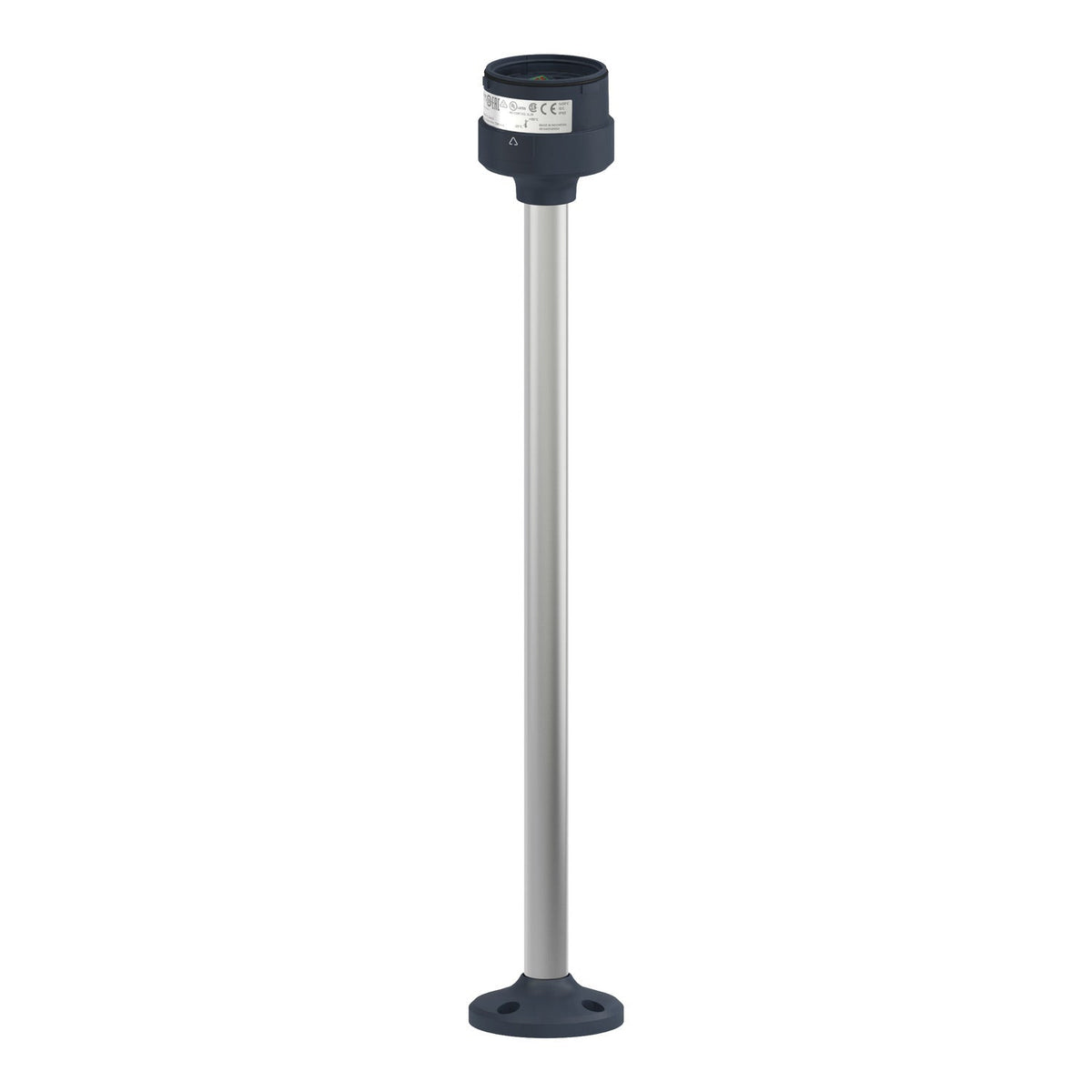

Schneider Electric XVUZ400 – Harmony XVU fixing plate with 400 mm aluminium pole, black.
Description
About the XVUZ400
About the XVUZ400
The Schneider Electric XVUZ400 is a fixing plate with 400 mm aluminium pole for the Harmony XVU modular tower light range, in black, used to mount or extend an XVU base unit rather than to signal on its own. It has an IP65 degree of protection and is compatible with the XVU top AC/DC body.
Certifications & Standards
- UL
- CSA
- CE
Compatibility
At 400 mm, this pole clears taller machine guarding or adjacent equipment that the 100 mm XVUZ02 cannot. It accepts both AC and DC XVU top bodies on one part number and pairs with the XVUZ12 wall-mount plate if a vertical-surface installation is needed instead of a free-standing pole.
Specification
Full specification
Main 6
| Range of Product | Harmony XVU |
|---|---|
| Product or Component Type | Modular tower light |
| Accessory / Separate Part Type | Fixing plate |
| Accessory / separate part category | Mounting and fixing accessory |
| Component name | XVU |
| Mounting diameter | 2.4 in (60 mm) |
Complementary 9
| Pole heigth | 15.7 in (400 mm) |
|---|---|
| Mounting Support | Plate with pole |
| Product compatibility | Top AC/DC body |
| Material | PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene), PC (polycarbonate), Aluminium |
| Housing Colour | Black |
| Connections - Terminals | Push-in |
| [Us] Rated Supply Voltage | 24 V AC/DC, 110...240 V AC |
| Length | 16.4 in (417 mm) |
| Net Weight | 0.520 lb(US) (0.236 kg) |
Environment 4
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| IP degree of protection | IP65 |
| Product Certifications | UL, CSA, CE |
Show all 32 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVUZ400 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485433165 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.236 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVUZ400
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
Quick answers
Questions about the XVUZ400
What is the HS code of XVUZ400 for customs?
The tariff (HS) code on file for XVUZ400 is 853890.
What is the EAN of XVUZ400?
The EAN (GTIN) of XVUZ400 is 3606485433165.
Where does XVUZ400 ship from, and how fast?
XVUZ400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Schneider Electric Harmony XVU
- Brand
- Schneider Electric
- Series
- Harmony XVU
